Removing and installing infrared remote central locking function indicator for front door - AR80.30-P-4310C
MODEL 129 as of 1.12.94 up to 31.5.96 except CODE (491) USA version
| Removal, installation | |||

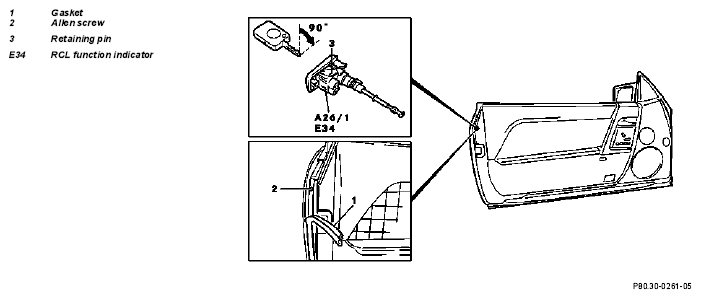

| 1 | Pull gasket (1) approx. 300 mm out of guide | ||
| 2 | Unscrew Allen screw (2) 4 mm | ||
| 3 | Turn key in lock cylinder approx. 90° | ||
| 4 | Pull out lock cylinder with RCL function indicator (E34) | ||
| 5 | Remove two retaining pins (3) with punch (1.8 mm Ø) | ||
| 6 | Remove RCL function indicator (E34) | ||
| 7 | Check gasket, replace if necessary | ||
| 8 | Reinstall in opposite order |
