Removing and installing transmitter-receiver unit - AR82.70-P-8911Z

MODEL 124, 129, 140, 202.01 /02 /12 with CODE (274) MB D-network telephone

MODEL 129, 140 as of 1.9.95, 170, 202.01 /02 /12 as of 1.9.95, 208, 210.0 with CODE (314a) D-network "Standard" telephone

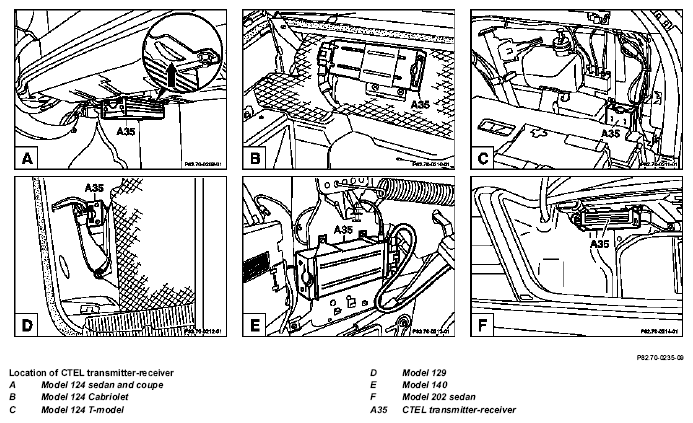

Fig 1: Identifying Transmitter-Receiver Unit Components - Model 124, 129, 140, 202.01 /02 /12 With Code (274)

G04714145

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying CTEL Transmitter Receiver Components Location - Model 170 And 208

G04714146

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

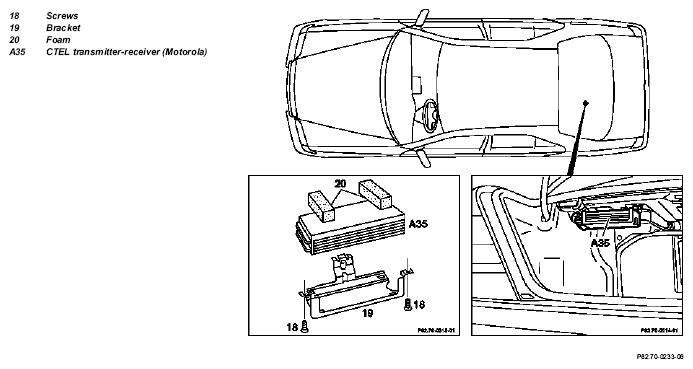

Model 202 sedan shown

Fig 3: Identifying CTEL Transmitter Receiver Components Location - Model 202 Sedan

G04714147

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

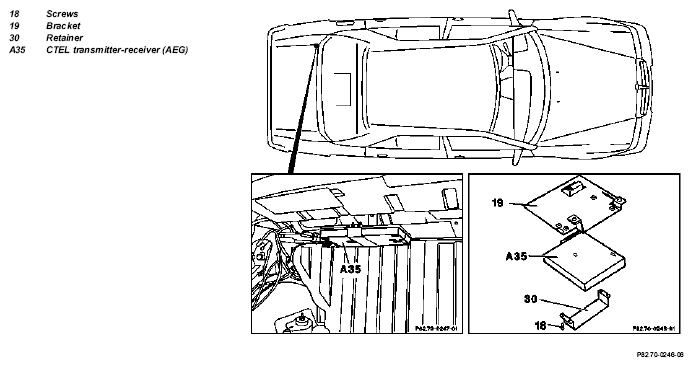

Model 124 sedan shown

Fig 4: Identifying CTEL Transmitter Receiver Components Location - Model 124 Sedan

G04714148

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

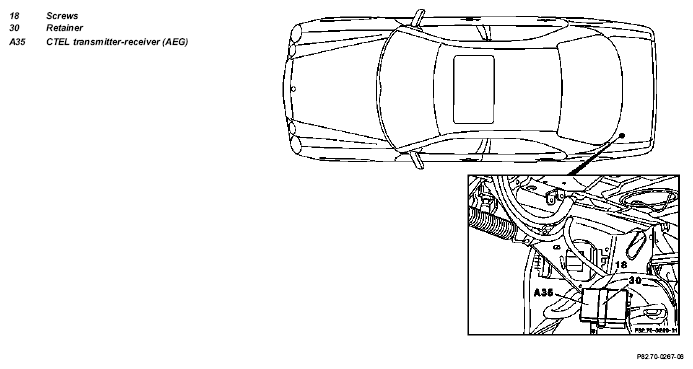

Model 210 sedan shown

Fig 5: Identifying CTEL Transmitter Receiver Components Location - Model 210 Sedan

G04714149

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying CTEL Transmitter Receiver Components Location - Model 170 Sedan

G04714150

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

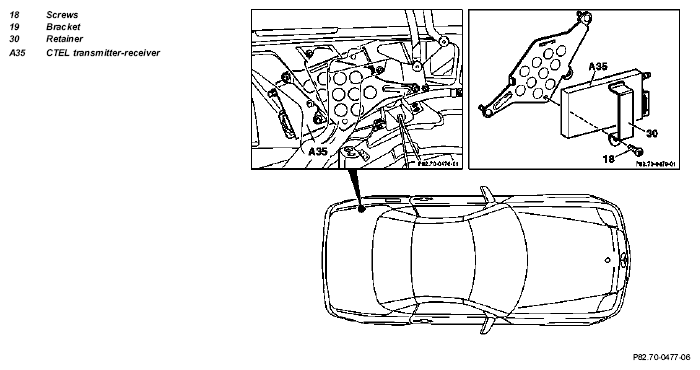

Model 208 shown

Fig 7: Identifying CTEL Transmitter Receiver Components Location - Model 208 Sedan

G04714151

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Connect quiescent current preservation unit		*WH58.30-Z-1012-09A
2	Disconnect ground cable at battery	To protect against inadvertent contact of disconnected ground cable with ground (battery) W10, insulate cable shoe of ground cable	AR54.10-P-0003A
3	Remove cover of left wheel house recess	Models 129, 140 and 210
4.1	Open side trim in right rear	Model 124 T-model
4.2	Open side trim in left of trunk	Model 170 Model 208	AR68.30-P-4800G
5	Remove cover on CTEL transmitter-receiver (A35)	Model 124 Cabriolet
6	Press back tensioning spring (arrow) on bracket and pull out CTEL transmitter-receiver (A35)	Model 124 (up to approx. 02/94) except Cabriolet
	Modified CTEL transmitter-receiver (A35)		BT82.70-P-9403-01A
7	Unscrew screws (18) and remove bracket (19) with CTEL transmitter-receiver (A35)	Model 124 Cabriolet, 129, 140 and 202 (up to approx. 02/94)
	Modified bracket for CTEL transmitter-receiver (A35)		BT82.70-P-9403-02A
8	Unscrew screws (18) and remove retainer (30) with CTEL transmitter-receiver (A35)	Models 124, 129, 140 and 202 (as of approx. 03/94) Models 170, 208, 210
9	Release and remove coupling on CTEL transmitter-receiver (A35)
10	Disconnect antenna cable on CTEL transmitter-receiver (A35)
11	Install in reverse order

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1012-09A	Quiescent current retention unit
