Removing and installing language control module switch - AR82.70-P-0002A

MODEL 140.### 1A as of 123447, 210 with CODE (813b) Voice activation system (VAS)

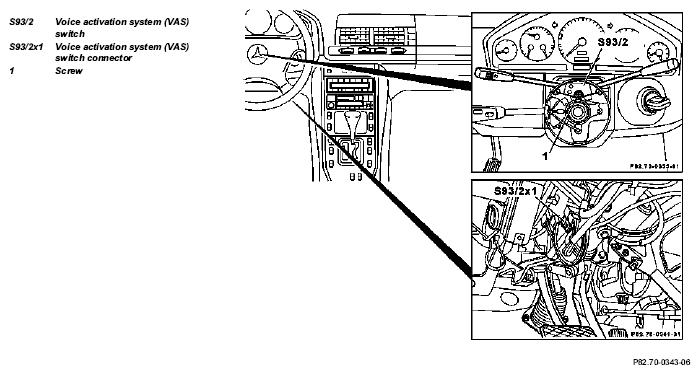

Shown on model 140 with cruise control

Fig 1: Identifying Voice Activation System (VAS) Switch - Model 140 With Cruise Control

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

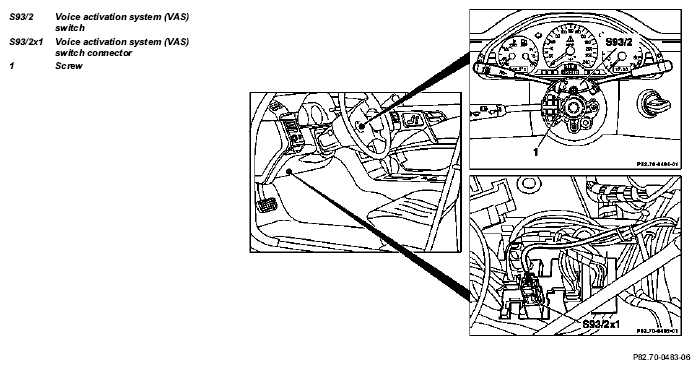

Shown on model 210 with cruise control

Fig 2: Identifying Voice Activation System (VAS) Switch - Model 210 With Cruise Control

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Connect quiescent current preservation unit		*WH58.30-Z-1012-09A
2	Disconnect ground cable of battery	On model 210, to protect against inadvertent contact of disconnected ground cable with ground (battery) W10, insulate cable shoe of ground cable	AR54.10-P-0003A
		On model 140	ra54001400003x
3	Remove steering wheel
4	Remove cover below left of instrument panel	On model 140	ra68001400150x
		On model 210	AR68.10-P-1500F
5	Unplug voice activation system (VAS) switch connector (S93/2x1)	Depending on version unplug cruise control connector
6	Unscrew screw (1)
7	Remove voice activation system (VAS) switch (S93/2) from jacket tube
8	Install in reverse order
