Removing and installing TELE AID emergency call system transmitter/receiver - AR82.95-P-0001A
MODEL 140.03 /04 /05 with CODE (348) TELE AID emergency call system
| Removal, installation | |||
|---|---|---|---|
| Notes on TELE AID emergency call system | Models 140, 210 | AH82.95-P-0001-01A | |
| 1 | Disconnect ground lead from battery | ||
| 2 | Remove cover on left wheelhouse recess | ||
| 3 | Remove side paneling in trunk on left | ||

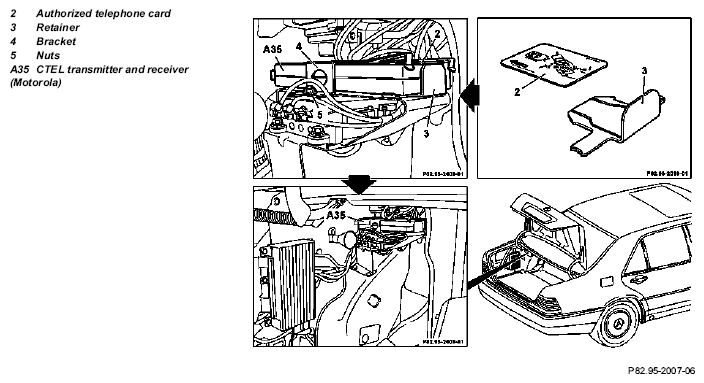

| 4 | Unscrew nuts (5) and bracket (4) from CTEL transmitter and receiver (A35) | ||
| 5 | Release connector on CTEL transmitter and receiver (A35) and disconnect | ||
| 6 | Disconnect antenna lead on CTEL transmitter and receiver (A35) | ||
| 7 | Remove retainer (3) | ||
| 8 | Remove authorized telephone card (2) from CTEL transmitter and receiver (A35) | ||
| 9 | Install in opposite order |
