Connect STAR DIAGNOSIS and read out fault memory - AD00.00-P-2000-04A

Illustrated on model 210

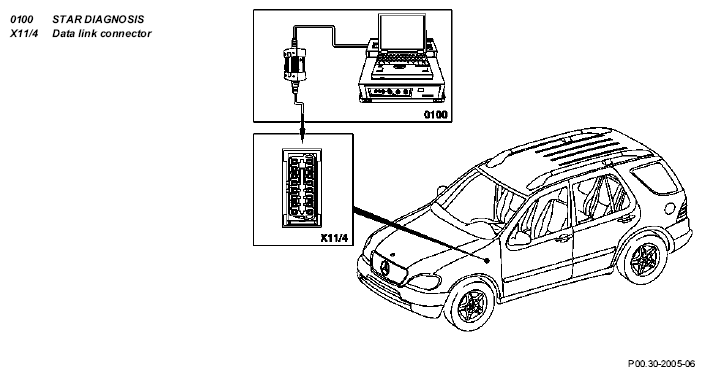

Fig 1: Connecting Star Diagnosis To Data Link Connector - Illustrated On Model 210

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 163

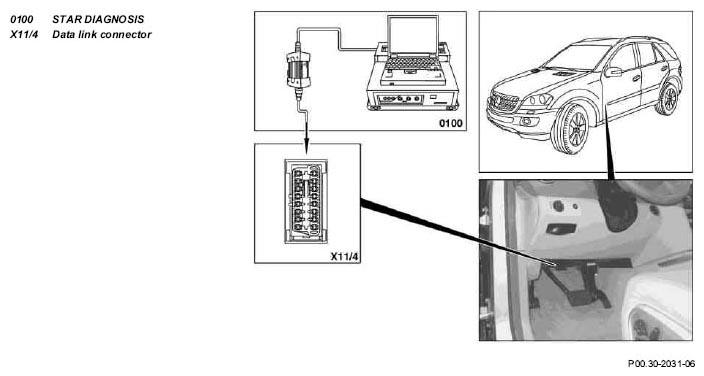

Fig 2: Connecting Star Diagnosis To Data Link Connector - Illustrated On Model 163

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.1

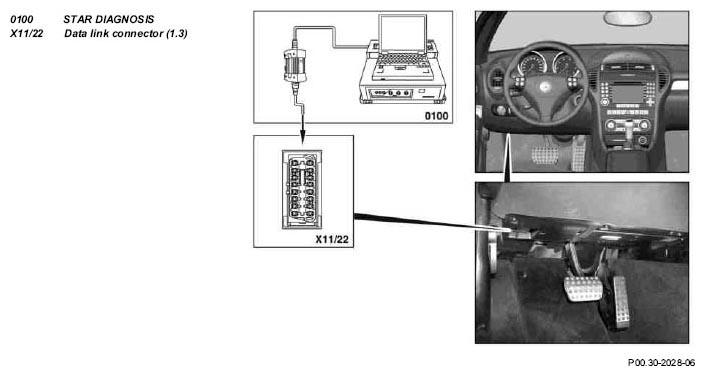

Fig 3: Connecting Star Diagnosis To Data Link Connector - Illustrated On Model 164.1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 461.302

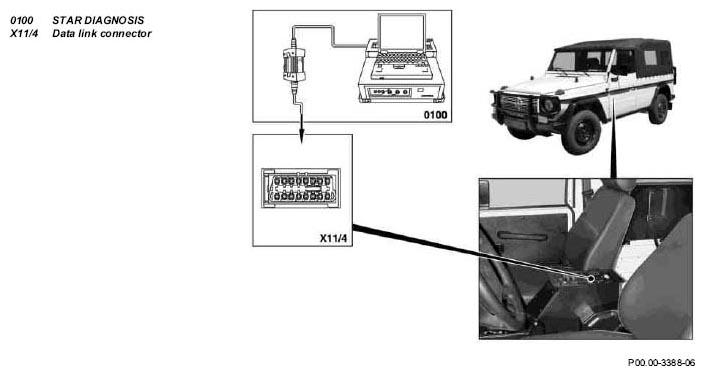

Fig 4: Connecting Star Diagnosis To Data Link Connector - Illustrated On Model 461.302

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 171.4

Fig 5: Connecting Star Diagnosis To Data Link Connector - Illustrated On Model 171.4

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Connect STAR DIAGNOSIS (0100) to diagnostic socket, on the data link connector (X11/4) or on the data link connector (1.3) (X11/22).
2. Switch on ignition.
3. Start the Diagnosis Assistance System.
4. In the "Model" menu, select the sub menu "Other model series".
5. Go through the instructions on the screen:
   • Enter the control unit version.
   • Read fault memory, erase.
   • Read actual values.
   • Perform actuations.
   • Adaptation of control units
6. Disconnect STAR DIAGNOSIS (0100).

Stored faults which may be caused by disconnecting cables or by simulation during testing operations must be deleted in the diagnostic trouble code memory following completion of the operations.
