Assignment of data link connector - AD00.00-P-2000-02A

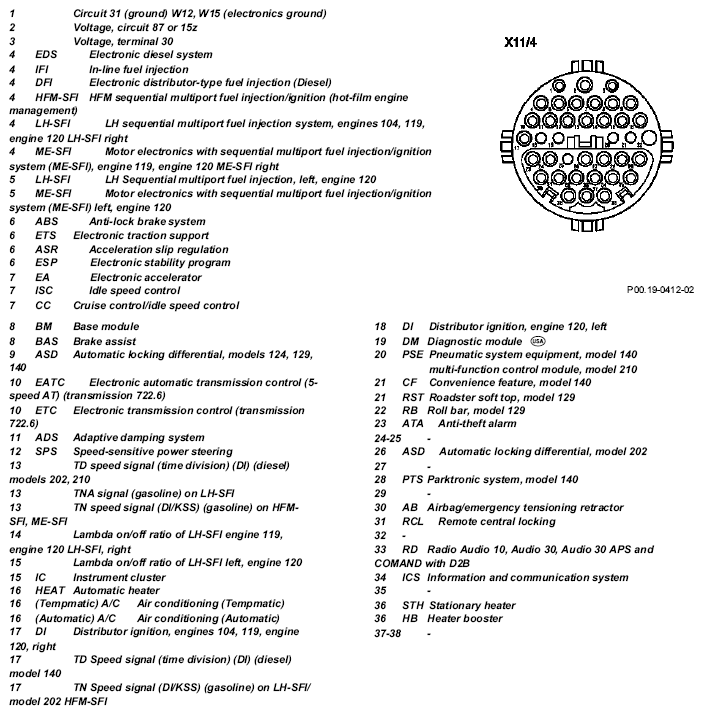

Fig 1: Identifying Assignment Of Data Link Connector

G05437978

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
