Electronic stability program (ESP) and SPS - GF42.45-P-0001-01B

Model 140

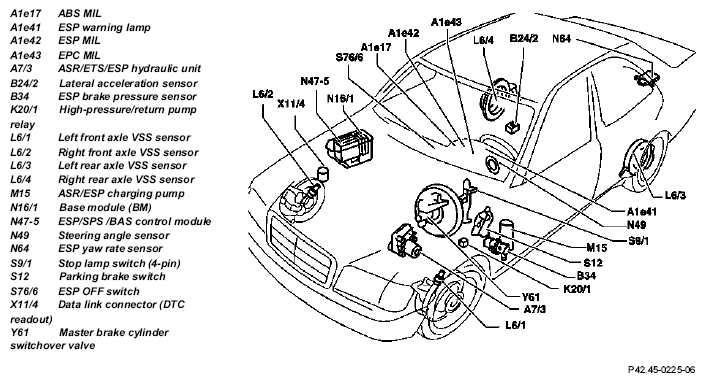

Fig 1: Identifying Electronic Stability Program (ESP) And SPS Components Location

G05438850

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
