Removal and installation of gear shift lever cover (manual transmission) - ra68001400230x(0230)

Model 140

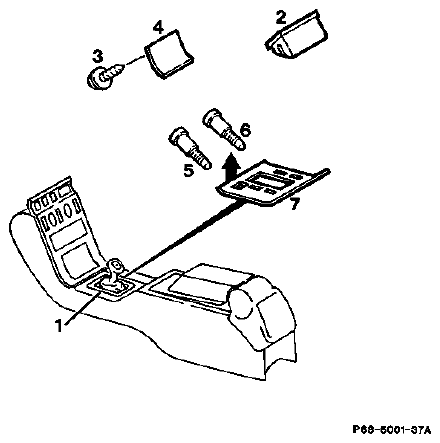

Fig 1: Identifying Cover On Gearshift Lever Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Frame for boot (1)	press upward out of cover (7) with plastic wedge.
Ashtray housing	open.
Ashtray insert (2)	remove.
Screw (3) in ashtray housing	loosen.
Wooden cover (4)	remove upward.
Screws (5 and 6)	screw out (Allen wrench WAF 4 mm, 2.5 Nm)
Cover (7)	press toward rear and lift at front. Then pry out cover toward front and up.
Danger of damage, do not  use sharp tools!
Plug connector on switch	disconnect.
Reinstall	in opposite order.

Removal, installation

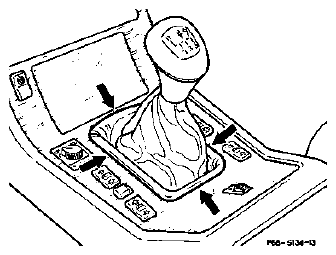

1. Press frame for gearshift lever boot up out of cover with plastic wedge (arrows).
2. Open ashtray housing and remove ashtray insert.
   Fig 2: Locating Gearshift Lever Boot

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Loosen screw (arrow) in ashtray housing.

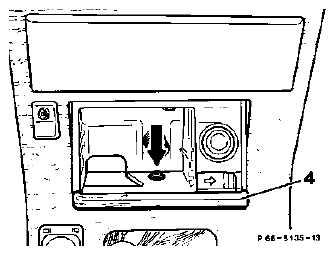

4. Remove wooden cover (4) upward.
   Fig 3: Identifying Wooden Cover

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
5. Screw out screws (2 each, arrows) (Allen wrench WAF 4 mm, 2.5 Nm).
   Fig 4: Identifying Screws

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

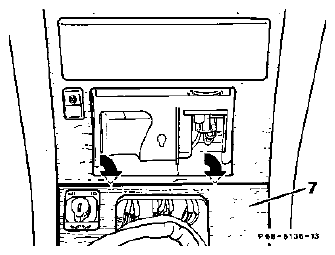

6. Press cover (7) toward rear and lift at front. Then pry out cover toward front and up.

   Danger of damage, do not  use sharp tools!

7. Disconnect plug connector on switch.
8. Reinstall in opposite order.

Fig 5: Locating Plug Connector On Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Arrows = rear retaining tabs

Fig 6: Locating Rear Retaining Tabs

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Cover - rear
