Steering System - Power Recirculating Ball - C220, C280, E300, E320, E420, E500, S320, S350, S420 & S500: Overhaul

NOTE: For exploded view of power steering pump, see Fig 1 or Fig 2 .

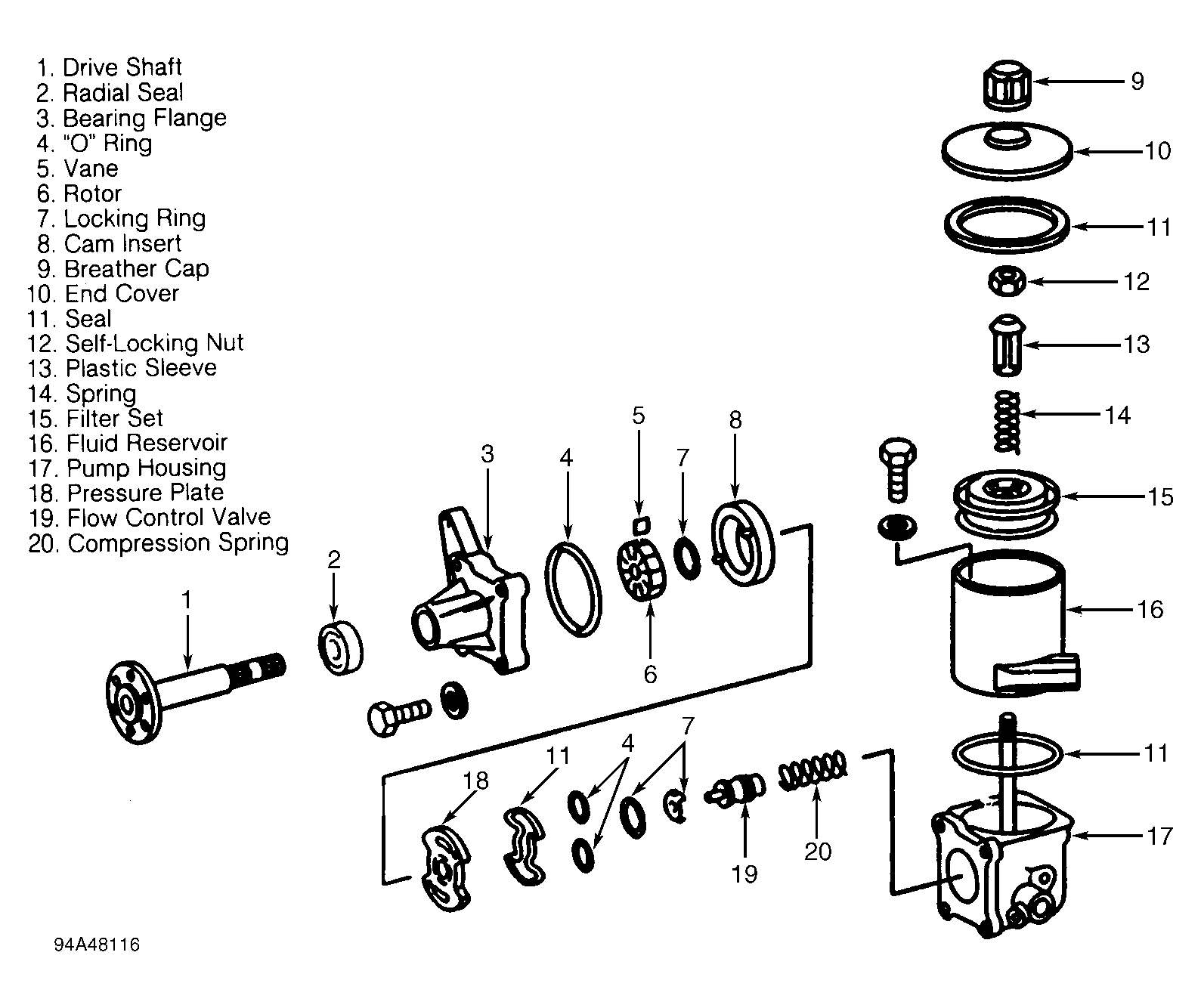

Fig 1: Exploded View Of Standard Power Steering Pump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

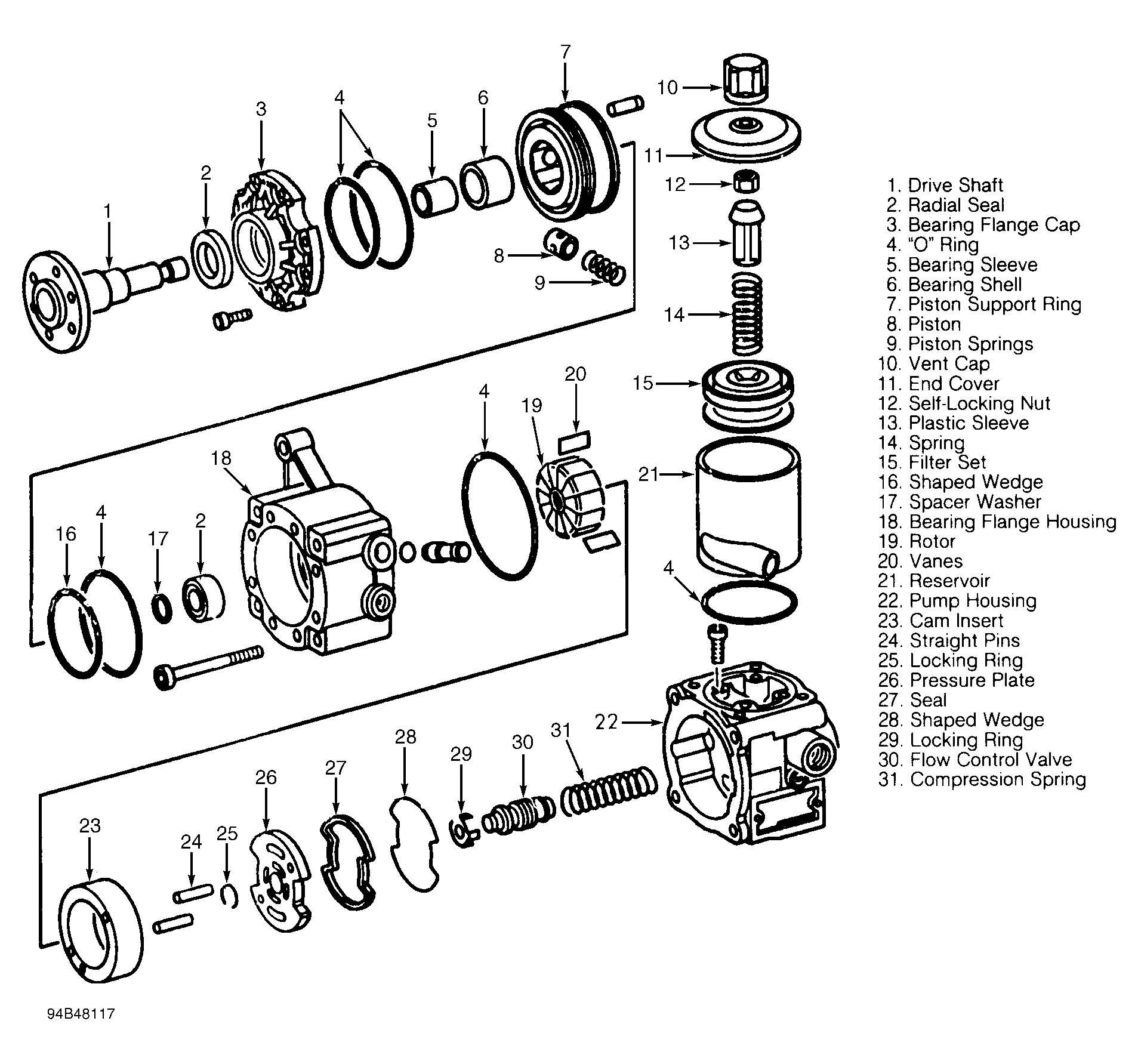

Fig 2: Exploded View Of Tandem Power Steering Pump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
