Inspect poly V-belt for wear and damage - AP13.22-P-1351GA

ENGINE 112.945 in MODEL 463.209 /232 /233 /244 /245 /250

ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113.982 in MODEL 463.243 /246

ENGINE 113.993 in MODEL 463.270 /271

Damage patterns

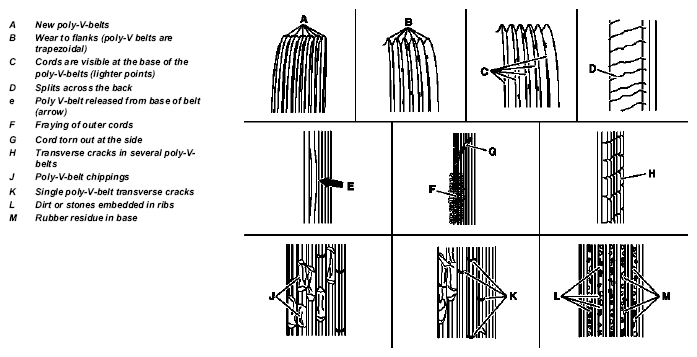

Fig 1: Identifying Poly V-Belt Wear And Damage Pattern (1 Of 2)

	Risk of injury. Moving parts can pinch, crush or  , in extreme cases even sever  extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Check
1	Inspect condition of poly V-belt	To do this, gradually crank the engine using the starters.
	Crank engine with starter	Engine 112.945 in Model 463.209/232/233/244/245/250 Engine 113.962 in Model 463.206/240/241/247/248/249/254 Engine 113.982 in model 463.243/246	AR01.10-P-0110V
		Engine 113.993 in model 463.270/271	AR01.10-P-0110GX
2	Establish damage chart
3	Replace V-ribbed belt	Only if poly-V belts are damaged.
	Remove/install poly V-belt	Engine 112.945 in Model 463.209/232/233/244/245/250 Engine 113.962 in model 463.206/240/241/247/248/249/254 Engine 113.982 in model 463.243/246	AR13.22-P-1202B
		Engine 113.993 in model 463.270/271	AR13.22-P-1202GX
