Acceleration Slip Regulation (ASR), Electronic Traction System (ETS) & Speed Sensitive Power Steering (SPS) Electrical Tests Program (Section 23)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1995 Mercedes-Benz SL600, 1995 Mercedes-Benz SL500, 1995 Mercedes-Benz SL320, 1994 Mercedes-Benz SL600, and 1994 Mercedes-Benz SL500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
To read ASR, ETS and SPS electrical tests, see READING & CLEARING DIAGNOSTIC TROUBLE CODES
under SELF-DIAGNOSTIC SYSTEM (SECTION 11).

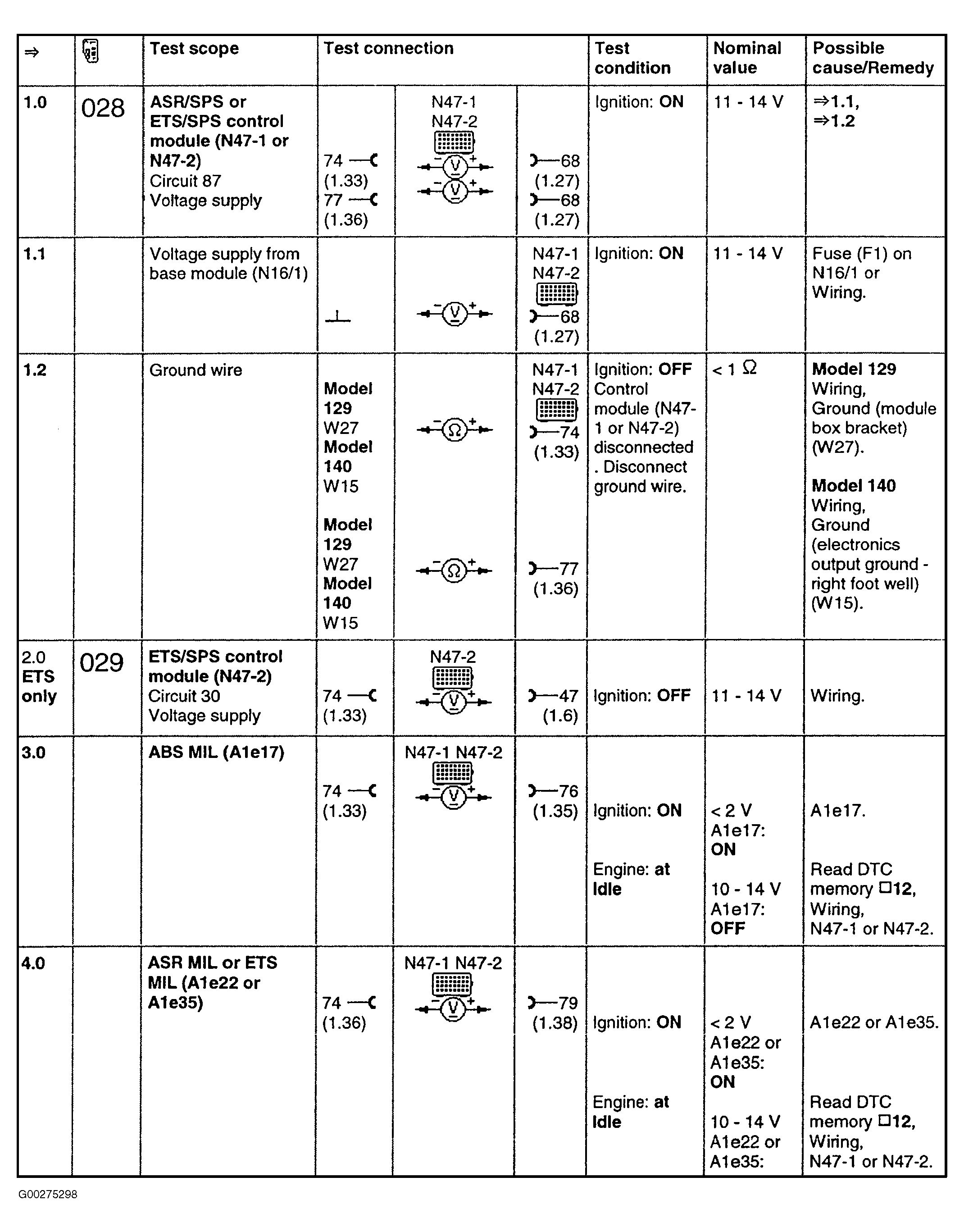

Fig 1: Acceleration Slip Regulation (ASR), Electronic Traction System (ETS) & Speed Sensitive Power Steering (SPS) Electrical Tests Program (Steps 1.0-4.0)

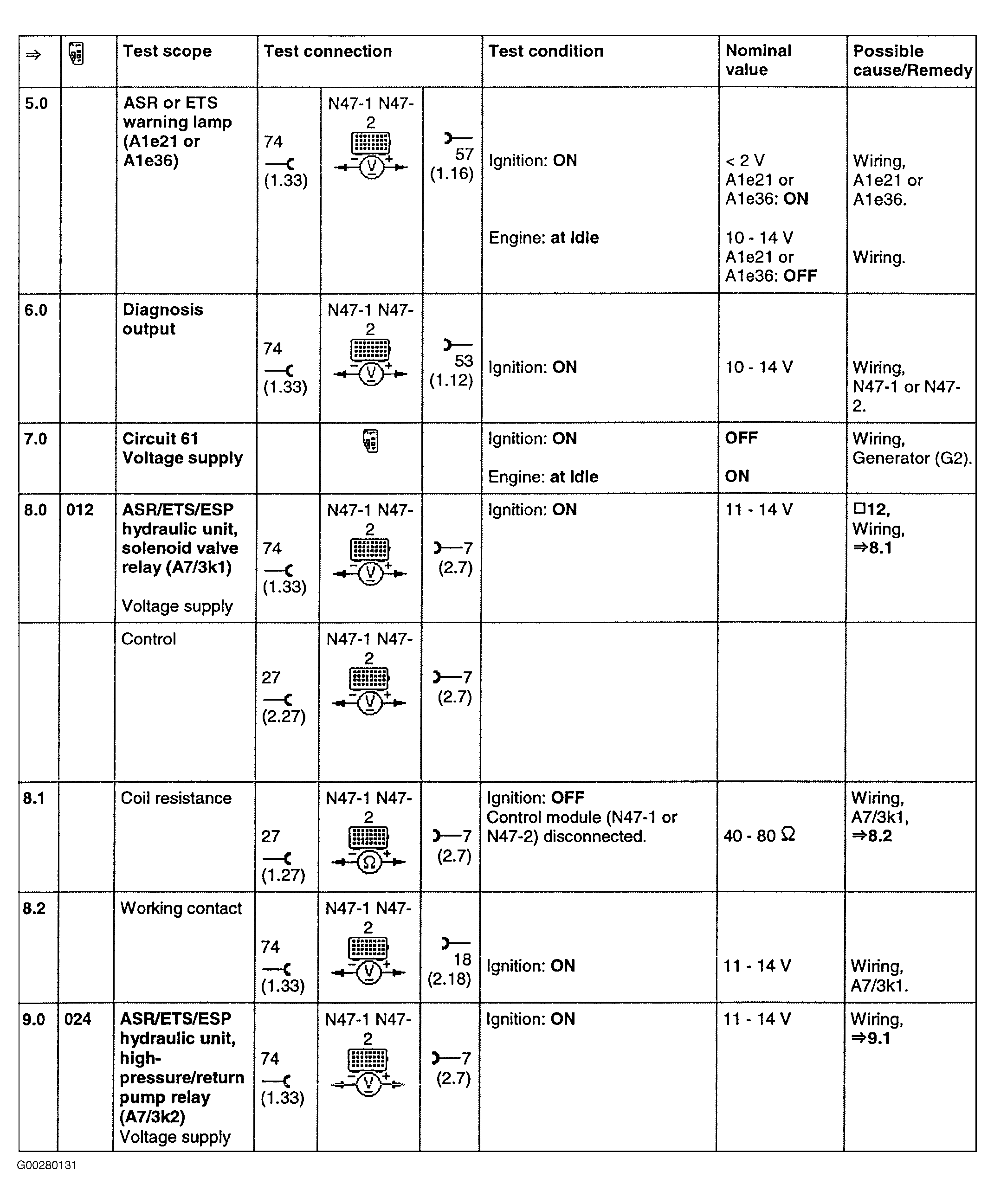

Fig 2: Acceleration Slip Regulation (ASR), Electronic Traction System (ETS) & Speed Sensitive Power Steering (SPS) Electrical Tests Program (Steps 5.0-9.0)

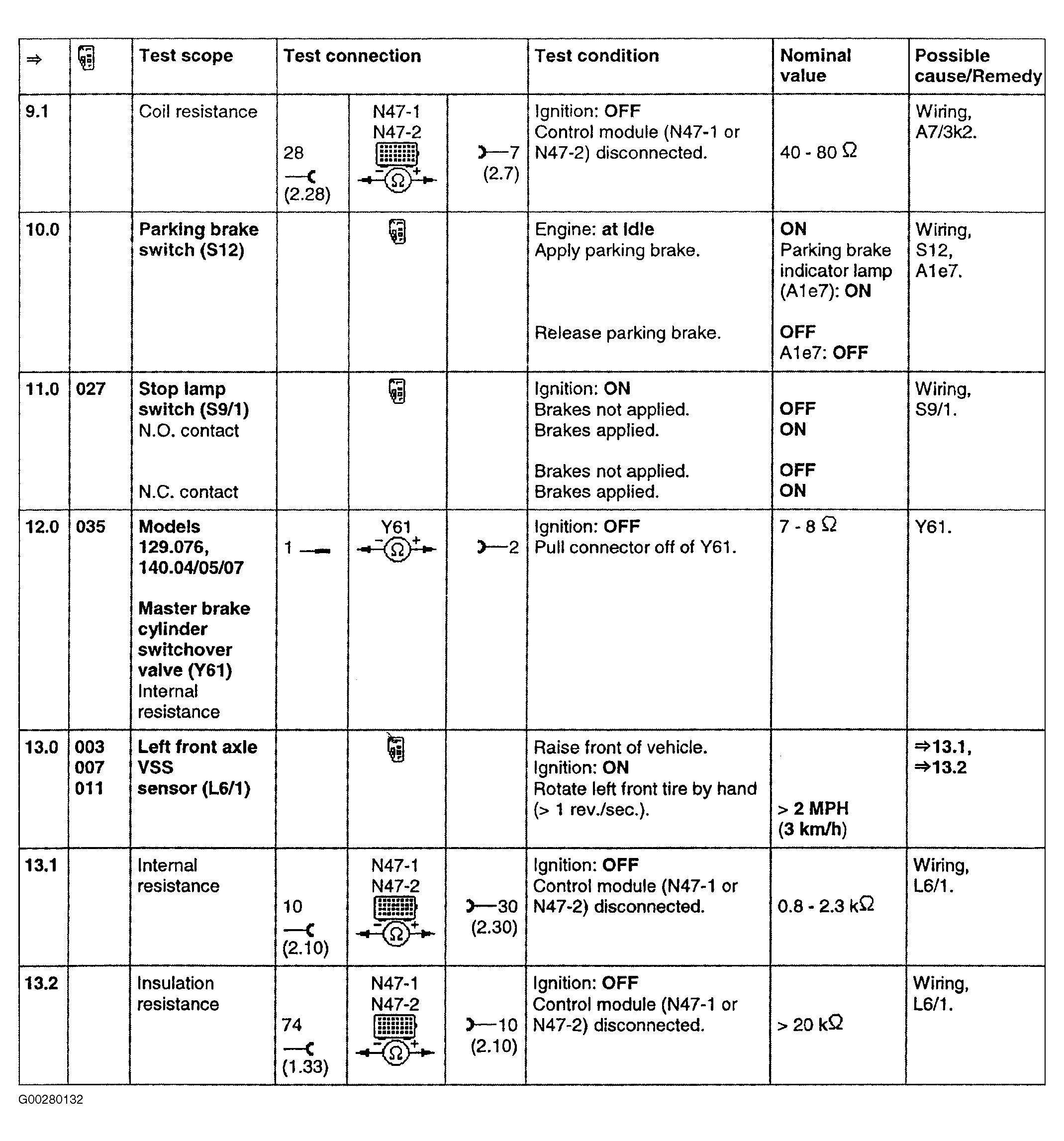

Fig 3: Acceleration Slip Regulation (ASR), Electronic Traction System (ETS) & Speed Sensitive Power Steering (SPS) Electrical Tests Program (Steps 9.1-13.2)

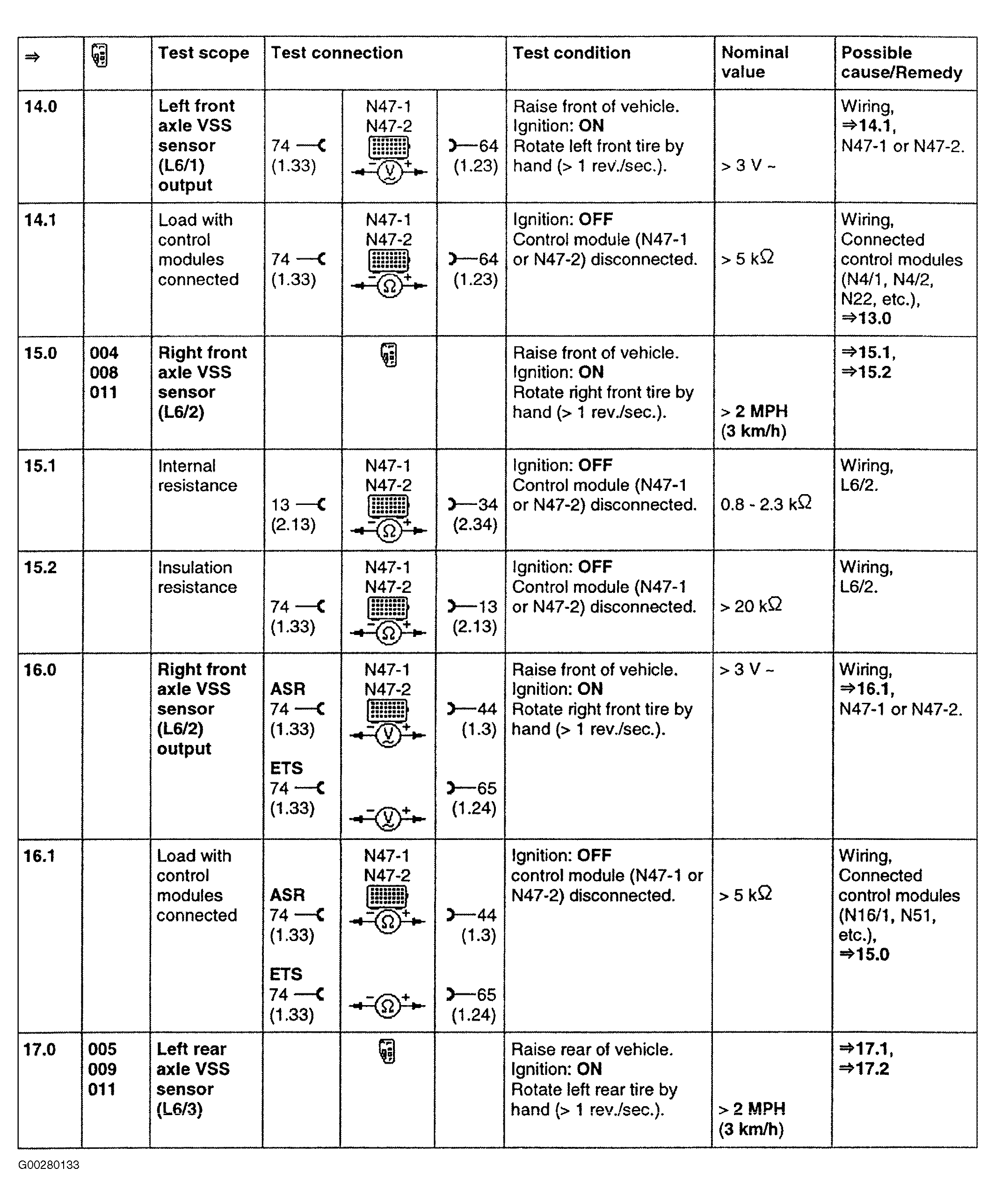

Fig 4: Acceleration Slip Regulation (ASR), Electronic Traction System (ETS) & Speed Sensitive Power Steering (SPS) Electrical Tests Program (Steps 14.0-17.0)

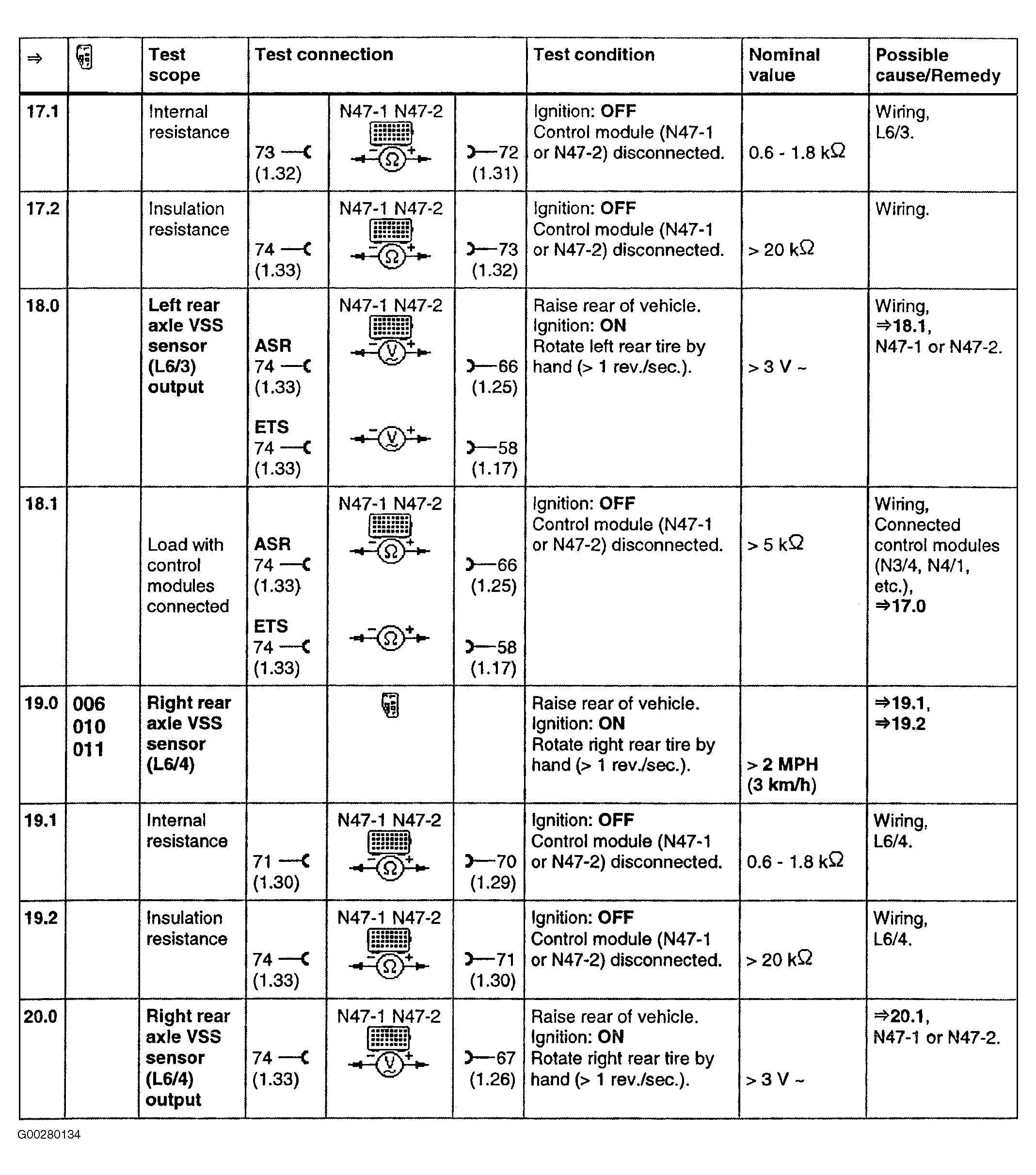

Fig 5: Acceleration Slip Regulation (ASR), Electronic Traction System (ETS) & Speed Sensitive Power Steering (SPS) Electrical Tests Program (Steps 17.1-20.0)

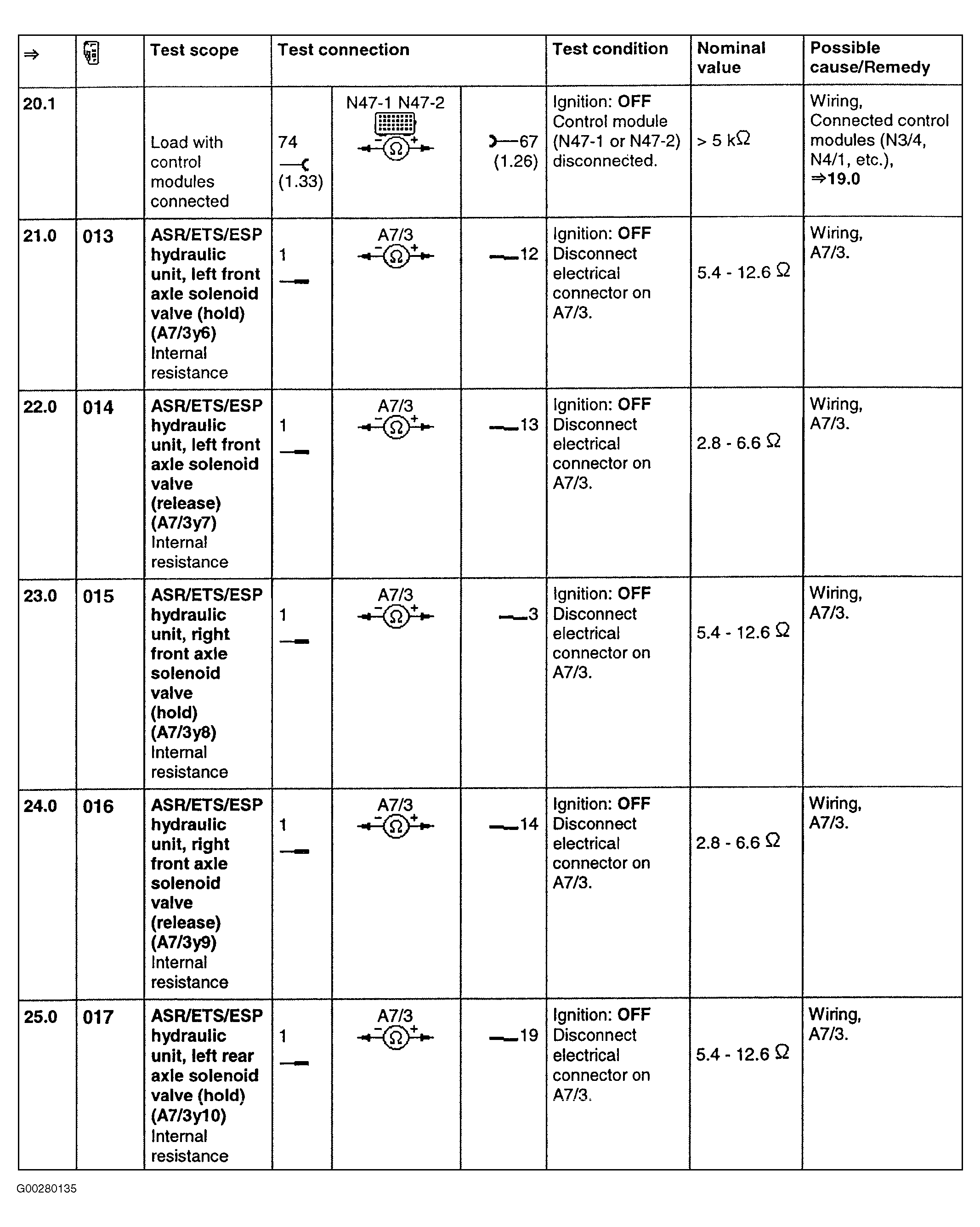

Fig 6: Acceleration Slip Regulation (ASR), Electronic Traction System (ETS) & Speed Sensitive Power Steering (SPS) Electrical Tests Program (Steps 20.1-25.0)
