Component Locations (Section 21)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1995 Mercedes-Benz SL600, 1995 Mercedes-Benz SL500, 1995 Mercedes-Benz SL320, 1994 Mercedes-Benz SL600, and 1994 Mercedes-Benz SL500. However, it is still accessible from the selected car via links, so may be relevant.

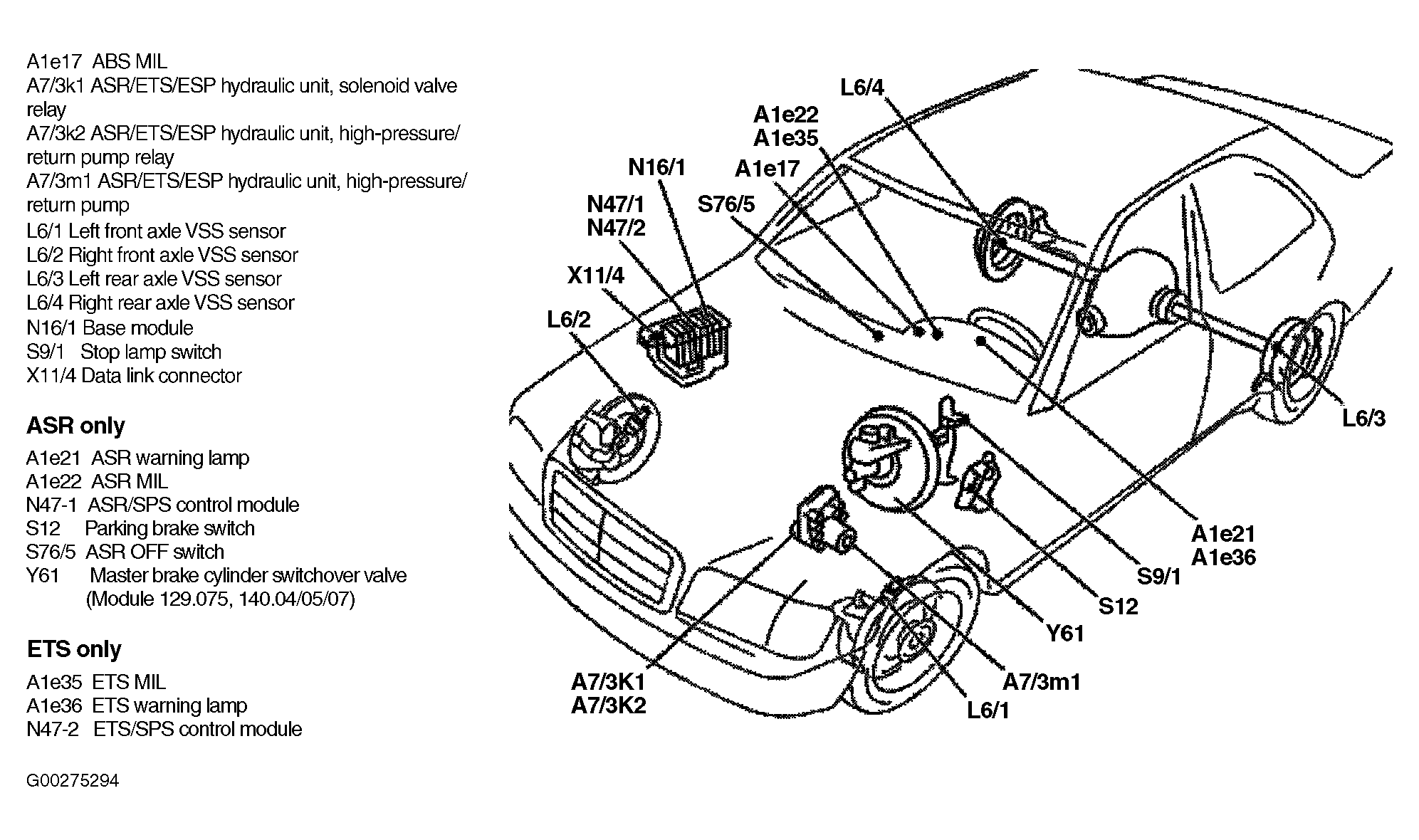

COMPONENT LOCATIONS
| Component | See |
|---|---|
| ABS Mil (A1e17) | Fig 1 |
| ASR/SPS Control Module (N47-1) | Fig 1 |
| ASR/ETS/ESP Hydraulic Unit High Pressure Return Pump (A7/3m1) | Fig 1 |
| ASR/ETS/ESP Hydraulic Unit High Pressure Return Pump Relay (A7/3K2) | Fig 1 |
| ASR/ETS/ESP Hydraulic Unit Solenoid Valve Relay (A7/3K1) | Fig 1 |
| ASR MIL (A1e22) | Fig 1 |
| ASR OFF Switch (S76/5) | Fig 1 |
| ASR Warning Lamp (A1e21) | Fig 1 |
| Base Module (N16/1) | Fig 1 |
| Data Link Connector (X11/4) | Fig 1 |
| ETS/SPS Control Module (N47-2) | Fig 1 |
| ETS MIL (A1e35) | Fig 1 |
| ETS Warning Lamp (A1e36) | Fig 1 |
| Left Front Axle VSS Sensor (L6/1) | Fig 1 |
| Left Rear Axle VSS Sensor (L6/3) | Fig 1 |
| Master Brake Cylinder Switch Over Valve (Models 129.076, 140.064/05/07) (Y61) | Fig 1 |
| Parking Brake Switch (S12) | Fig 1 |
| Right Front Axle VSS Sensor (L6/2) | Fig 1 |
| Right Rear Axle VSS Sensor (L6/4) | Fig 1 |
| Stop Lamp Switch (S9/1) | Fig 1 |
