Function of windshield wiper system - GF82.30-P-0005A
MODEL 202 as of 1.6.97, 208, 210.081 /281, 210 / (except 210.081 /281) as of 1.3.97
Interlinkage of components

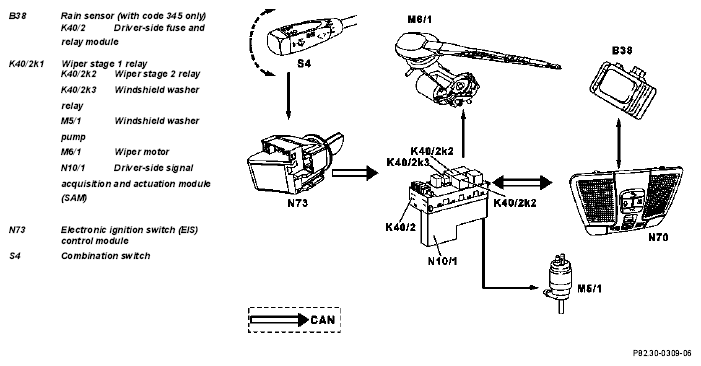

Fig 1: Identifying Windshield Wiper System Interlinkage Components - Model 202 As Of 1.6.97, 208, 210.081 /281, 210 / (Except 210.081 /281) As Of 1.3.97
Prerequisite for all windshield wiper functions:
- Circuit "15R ON"
Function
The windshield wiper system is controlled with the combination switch (S4) .
The following functions can be selected by turning the switch:
- Wiping with low speed (stage 1) or high speed (stage 2).
- Intermittent wiping
, with rain sensor (code 345) installed
with automatic interval control.
When the switch is pressed in the direction of the steering column:
- Press to pressure point (wipe once) : Wiping without washing.
- Pressing beyond pressure point: Front window is washed with water. Model 202: When the headlamps are switched on the headlamp cleaning system (HCS) is also actuated.
| Location of components for windshield wiper system | GF82.30-P-0005-01A | ||
| Windshield wiping | GF82.30-P-3004A | ||
| Intermittent wiping | GF82.30-P-3003A | ||
| Windshield washing | GF82.35-P-3002A | ||
| Combination switch | GF82.30-P-2100A | ||
| Headlamp cleaning system (HCS) | Model 202 | GF82.15-P-0002A | |
| Models 208, 210 | GF82.15-P-0002B |
