Removal, installation and adjustment of trunk lid lock and striker eye - ra88001400502x(0502)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

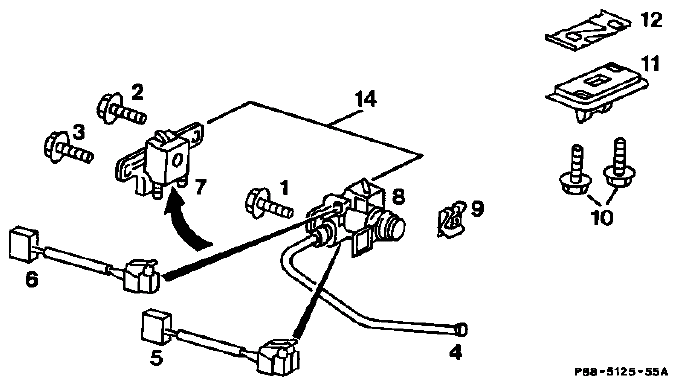

Fig 1: Identifying Trunk Lid Lock And Striker Eye Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REMOVAL OF TRUNK LID LOCK

Trunk lid	open.
Panelling of rear center panel	remove, install (68-485).
Screws (1-3)	unscrew, WAF10. 10 Nm.
Trunk lid lock (14)	remove from rear center panel.
Central locking system lead (4) on trunk lid lock (14)	detach.
Electric cables at plug connectors (5 and 6)	disconnect.
Closure housing (7)	remove from lock cylinder housing (8) by disengaging lock (arrow) using a screwdriver.

REMOVAL OF STRIKER EYE

Screws (10)	unscrew, WAF10. 10 Nm.
Striker eye (11) on trunk lid	remove.
Tapped plate (12)	remove from trunk lid.

INSTALLATION AND ADJUSTMENT OF TRUNK LID LOCK AND STRIKER EYE

Left and right-hand reflective strips as well as lock surround installed.
Trunk lid lock (14)	insert in rear center panel and screw in screws (1-3), however do not tighten.
Lock cylinder housing (8)	align so that chrome cap is central in lock surround.
Screw (1)	tighten securely, 10 Nm.
Upper closure housing (7)	align flush to upper closing panel of rear center panel and tighten using screw (2 and 3).
Tapped plate (12)	install in trunk lid.
Striker eye (11) or closing aid	fasten on trunk lid with screws (10), only tighten screws (10) loosely so that striker eye can center in closure housing (7). Note information on closing aid!
Trunk lid	close slowly, whilst carrying out visual inspection whether the striker eye is located centrally in closure housing (7).
Striker eye	adjust. This can be adjusted in the transverse and longitudinal direction.
Screws (10) in the striker eye (11) or closing aid
	tighten, 10 Nm.
Trunk lid	check for ease of closing and fit to the rear fenders, to correct only adjust screws (2 and 3) in closure housing (7). Only adjust closure housing for height. The closure housing (7) should not be adjusted in the transverse direction. Malfunctions of the central locking system would result.
Continue to reinstall	in opposite order.

Vehicles with closing aid

Striker eye must be put in the retracted position. To do this, swivel the emergency operating device to the left, press in striker eye, then move the emergency operating device again into the vertical position.

Removal of trunk lid lock

Remove panelling of rear center panel (68-485).
Unscrew screws (1 - 3).
Remove trunk lid lock from rear center panel.

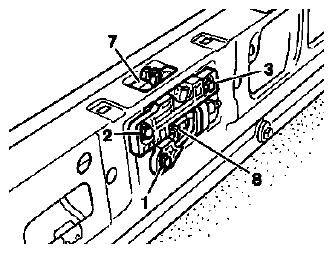

Fig 2: Identifying Trunk Lid Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Detach cable (4) from central locking element.
Disconnect plug connector (5 and 6).

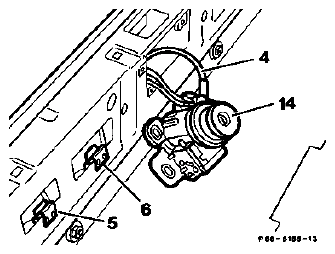

Fig 3: Identifying Trunk Lid Connectors And Cable
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove closure housing (7) from lock cylinder housing (8), by disengaging the lock (arrow) using screwdriver and remove closure housing.

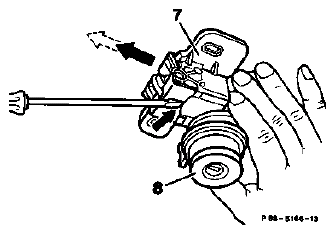

Fig 4: Removing Closure Housing From Lock Cylinder Housing
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Removal of striker eye

Unscrew screws (10) and remove striker eye (11) on trunk lid.
Remove tapped plate from trunk lid.

Fig 5: Identifying Trunk Lid Striker Eye And Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Installation and adjustment of trunk lid lock and striker eye

The left- and right-hand luminous strips as well as lock surround are installed.
Plug central locking system cable on element of trunk lid lock.
Install trunk lid lock (14) in rear center panel.
Connect plug connector (5 and 6) and insert in the plug-in clips.

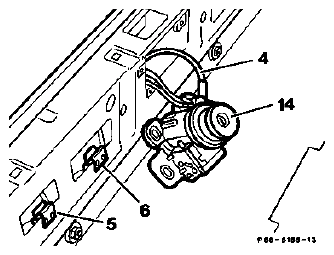

Fig 6: Identifying Trunk Lid Lock, Connector And Cable
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screw in screw (1-3), however do not tighten.

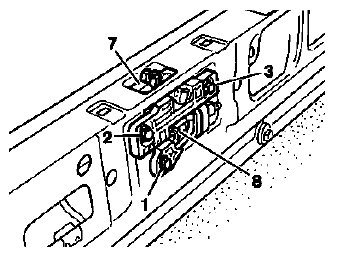

Fig 7: Identifying Trunk Lid Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Align lock cylinder housing (8) so that the chrome cap is central in the lock surround (arrows).

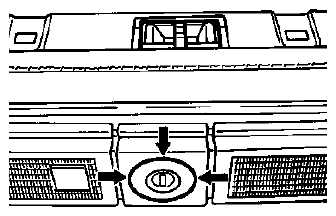

Fig 8: Locating Lock Cylinder Housing Chrome Cap
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Tighten screw (1) securely, 10 Nm.

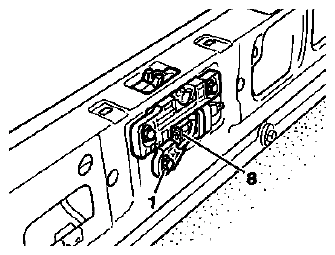

Fig 9: Identifying Trunk Lid Screw
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Align upper closure housing (7) flush with the upper closing panel of the rear center panel and tighten with screw (2 and 3).

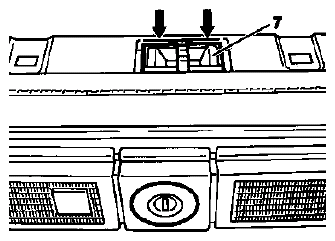

Fig 10: Locating Upper Closure Housing
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Insert tapped plate (12) in the trunk lid.
Fasten striker eye or closing aid on trunk lid with screws (10).

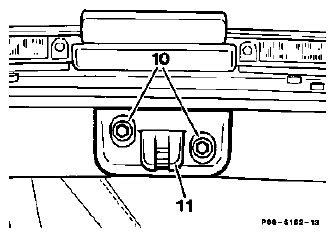

Fig 11: Identifying Trunk Lid Screws And Striker Eye
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Only tighten screws (10) loosely so that the striker eye can center in the closure housing (7).

Note for vehicles with closing aid!
Close trunk lid slowly whilst carrying out a visual inspection whether the striker eye (11) is central in the closure housing (7).

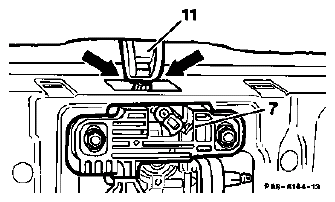

Fig 12: Identifying Trunk Lid Striker Eye
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Adjust striker eye (11). It can be adjusted in the transverse and longitudinal direction.
Tighten screws (10) Tightening torque: 10 Nm.

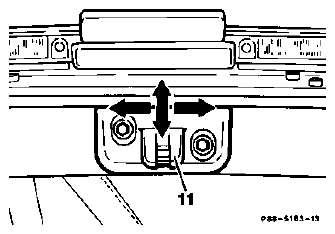

Fig 13: Adjusting Striker Eye
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Check trunk lid for ease of closing and fit to the rear fenders. To correct only slacken the screws (2 and 3) on the closure housing (7), only adjust housing for height. The closure housing (7) must not be adjusted in the transverse direction. Malfunctions of the central locking system would result.
Continue to reinstall in opposite order.

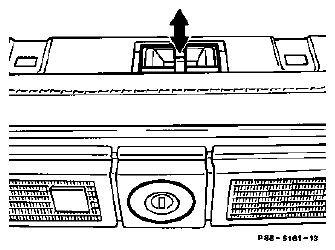

Fig 14: Adjusting Trunk Lid Closure Housing
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
