Removal, installation and adjustment of micro switch (striker switch S88/3s1) on trunk lid power locking - ra88001400535x(0535)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Trunk lid power locking removed (88-530)

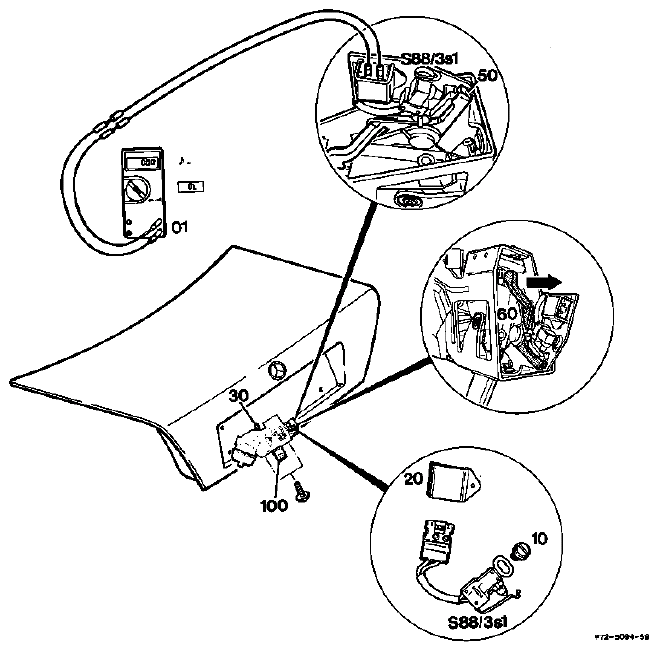

| Screw (10) | unscrew. |
| Cover (20) | unclip and remove with microswitch S88/3s1. |
Reinstall in opposite order.
ADJUST MICROSWITCH (AFTER INSTALLATION)
| Multimeter (01) | connect according to drawing and set to acoustic continuity test. |
| Emergency actuation (30) | actuate and press in striker eye (100). |
| Microswitch (S88/3s1) | adjust against actuating lever (50) until acoustic signal sounds. |
| Emergency actuation (30) | move back to vertical position. |
| Lever (60) | pull toward microswitch, so that striker eye (100) slides upward and acoustic signal stops. |
Perform function check.
Special tool
COMMERCIALLY AVAILABLE TOOLS AND TESTING EQUIPMENT
| Designation | e.g. company, order no. |
|---|---|
| Multimeter | e.g. Fluke 23 DB Sun DMM5 Thorn Emi Avometer 2003 |
