Removal and installation of trunk lid hinge lever - ra88001400512x(0512)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Trunk lid removed (88-500)
Parcel shelf removed (68-458)

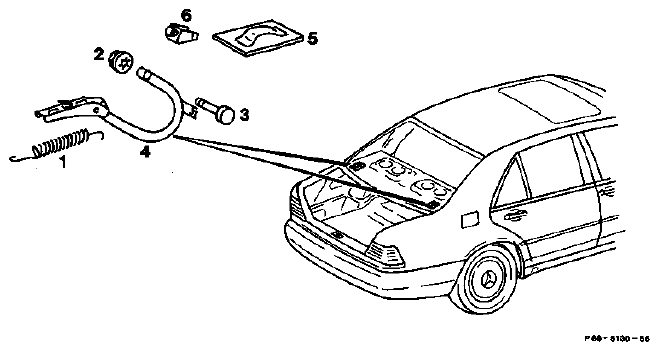

| Spring (1) | remove. |
| Vapor seal (5) above bracket | remove. |
| Nut (2) | unscrew. |
| Eccentric bolt (3) | remove. |
| Hinge lever (4) | remove. |
| Reinstall | in opposite order. |

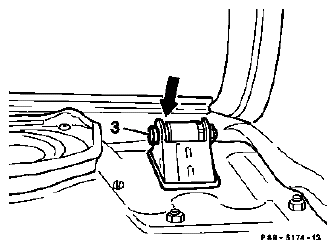

Using the eccentric bolt (3) the installed position of the trunk lid can also be adjusted for height and in the longitudinal direction.
