Removal and installation of striker eye on trunk lid power locking - ra88001400545x(0545)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Trunk lid power locking removed (88-530)

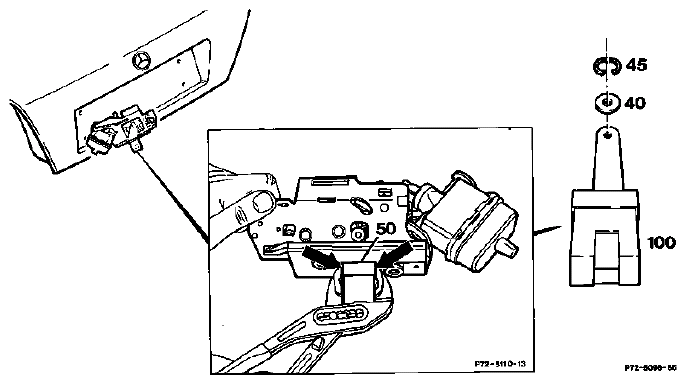

| Snap ring (45) | remove together with washer (40). |
| Catch on guide part (50) | press together (arrows) with water pump pliers and push out toward top. |
| Striker eye (100) Reinstall in opposite order. Perform function check. |
unhook and remove downward. |
