Removal and installation of rear inner fender - ra88001400140x(0140)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Raise vehicle and detach wheel.

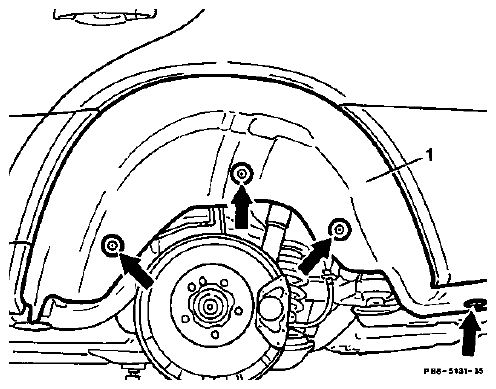

| Plastic nuts (arrows) | unscrew. |
| Inner fender (1) | lift over the studs and remove downwards. |
| Sealing rubber in area of bumper | check. |
| Inner fender (1) | when installing insert in front side of the frame side member panelling and assemble sealing rubber in area of bumper. |
