Removal and installation of radiator grille trim strips - RA88001400402X(0402)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Radiator grille removed (88-401)

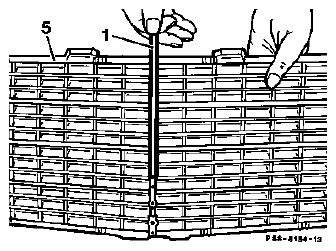

Fig 1: Identifying Trimstrip And Radiator Grille

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

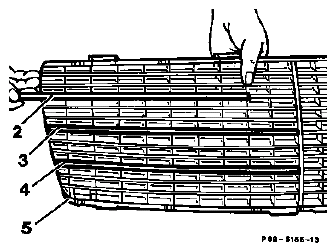

Fig 2: Identifying Trimstrip Bracket And Radiator Grille

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Trimstrip (1) on radiator grille (5)	remove upwards.
Trimstrip bracket (2, 3 and 4) on radiator grille (5)	remove sideways.
Reinstall	in opposite order.
