Removal and installation of radiator grille - ra88001400401x(0401)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Radiator panelling removed (88-400)

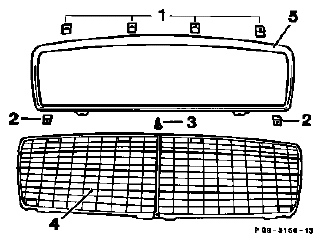

Fig 1: Identifying Radiator Grille Plug-In-Clips, Radiator Grill And Radiator Cowl

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

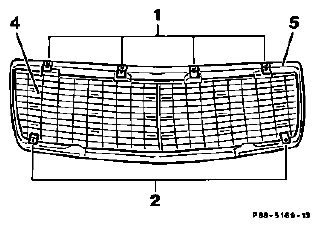

Fig 2: Identifying Radiator Grill And Radiator Cowl

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Plug-in clips (1 and 2)	press off using plastic wedge.
Screw (3)	unscrew.
Radiator grille (4)	remove from chrome frame of radiator cowl (5).
Trim strips on radiator grille (4)	remove.
Reinstall	in opposite order.
