Removal and installation of pneumatic actuating element for trunk lid power locking - ra88001400540x(0540)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Trunk lid power locking removed (88-530)

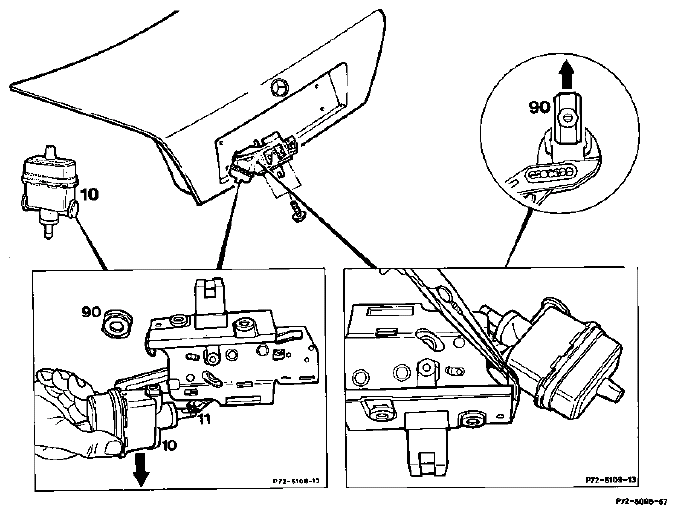

| Locking part (90) | turn with pliers until cut sections are vertical. |
| Actuating element (10) | move out upward on one side and remove from mount on opposite side. |
| Actuating element (10) Reinstall in opposite order. Perform function check. |
press off on ball head (11). |
