Removal and installation of paneling on the A-pillar - ra88001400850x(0850)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140

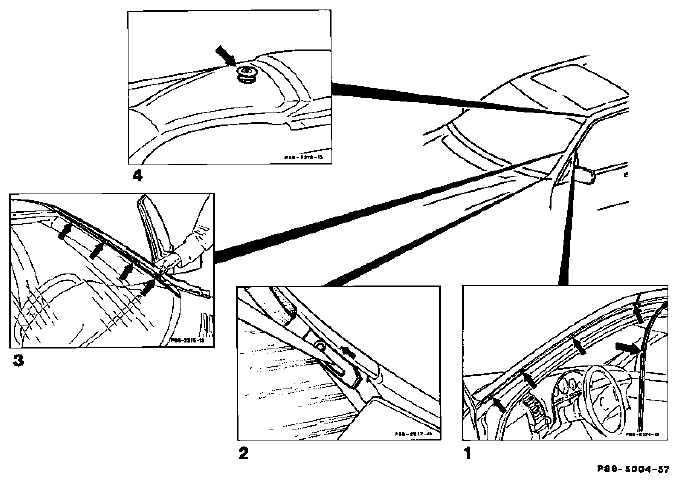

| Edge protector | pull off and unscrew screws (Fig 1). |
| Catch (Fig 1) | push up with plastic wedge. |
| Panelling (Fig 1) | press off of A-pillar. |
| press off of A pillar. | The panelling can be damaged if it is pulled too far away from the A-pillar before it is unhooked at the top. |
| Panelling | remove from A-pillar in direction of fender (Fig 1). |
| Reinstall | in opposite order. |
