Removal and installation of front inner fender - ra88001400130x(0130)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Raise vehicle and remove wheel.

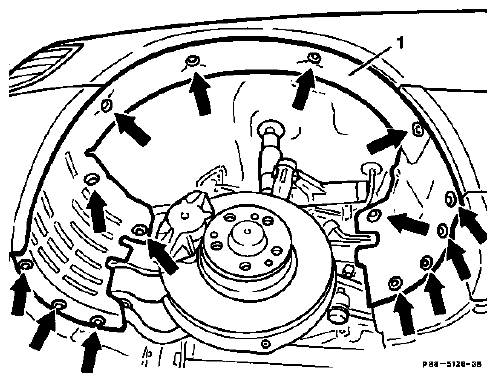

Fig 1: Locating Front Inner Fender Nuts And Screws

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Screws and nuts	unscrew (14 pieces).
Inner fender (1)	remove.
Sealing rubber	ensure correct seating when installing.
Install	in opposite order
