Removal and installation of engine hood hinges - ra88001400306x(0306)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Engine hood removed (88-300)

Inner fender in front fender removed (88-130)

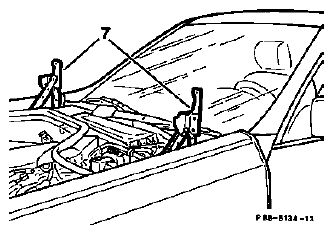

Fig 1: Identifying Engine Hood Hinge

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

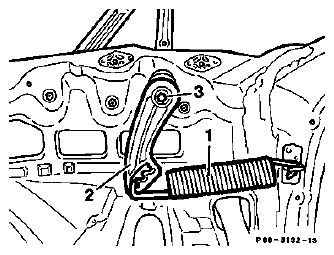

Fig 2: Identifying Bracket, Spring And Bolt

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

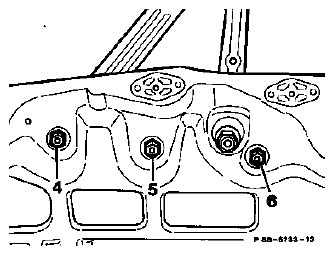

Fig 3: Identifying Hinge Lever Nut

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Engine Hood Hinge

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Installed position of hood hinge	mark on wheel house panel.
Spring (1) on bracket (2)	unhook.
Bolt (3)	unscrew, when installing coat thread with locking agent, 10 Nm.
Bracket (2)	remove. Note installed position: when engine hood is vertical the bracket (2) points vertically downwards.

Electric cable or water hose on hinge lever	unclip (2 Ω clips in each case).
Nut (4 to 6)	unscrew and remove together with plain washer, 10 Nm.
Engine hood hinge (7) on wheel house panel	remove, the cover of the module box on the right engine hood hinge has to be screwed out in advance.
Reinstall	in opposite order, then check engine hood adjustment, adjust if required (88-302).
