Removal and installation of element for retracting trunk lid grip - ra88001400600x(0600)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140

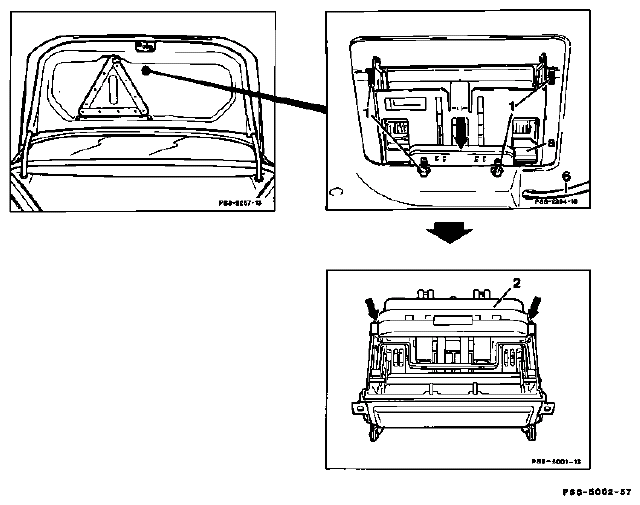

| Trunk lid covering | remove, install. |
| Screw (1) | unscrew, screw on (4 each). |
| Pneumatic line (6) | disconnect, reconnect. |
| Retractable trunk lid grip | remove. |
| Retaining tabs (arrows) | press in with flat screwdriver. |
| Element (2) | pull off, install. |
| Pneumatic function of element | check. Diagnosis Manual, Body, Volume 1. |
| Element (2) | reinstall in opposite order. |
