Removal and installation of cover on rear bumper - ra88001400225x(0225)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Bumper removed (88-220).
Operation no. of operation texts and work units or standard texts and flat rates:

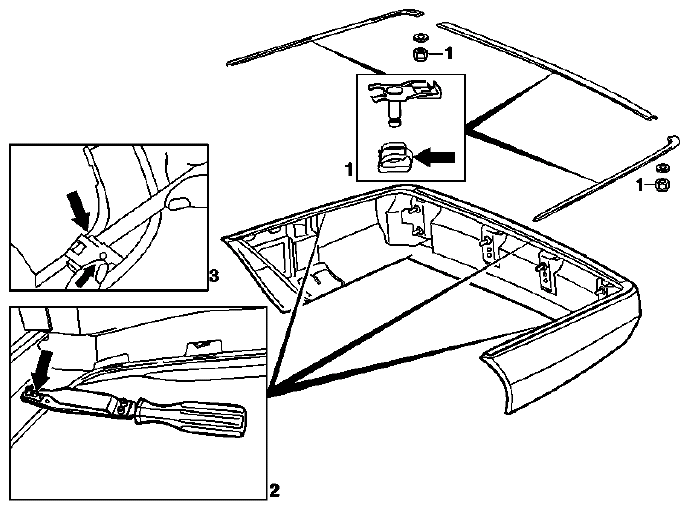

| Nuts (1) at separation points on left and right | unscrew, screw on. |
| Clips (Fig 1, arrow) | remove, install, installation tool 140 589 34 23 00 (Fig 1). |
NOTE:
Convert holder to replace cover (Fig 1).
Special tool
