Removal and installation of cover on front bumper - ra88001400205x(0205)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Bumper removed (88-200).

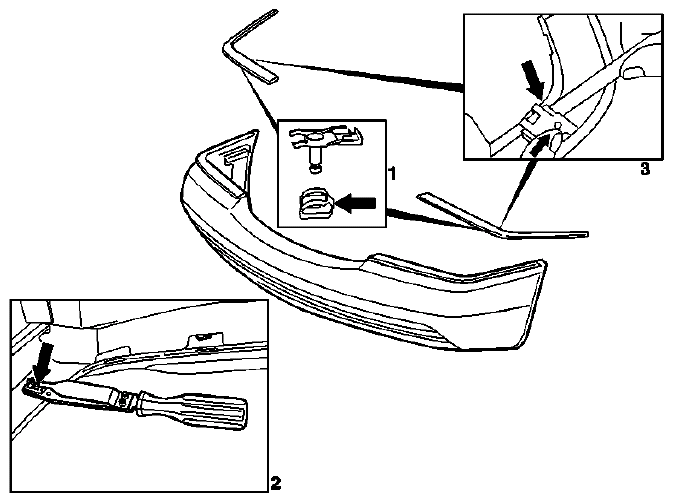

Fig 1: Identifying Front Bumper Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Clips (Fig 1, arrow)	remove, install, installation tool 140 589 34 23 00 (Fig 1).
	NOTE: Convert holder to replace cover (Fig 1).

Special tool

Fig 2: Identifying Special Tool (140 589 34 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
