Removal and installation of Mercedes star - ra88001400405x(0405)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

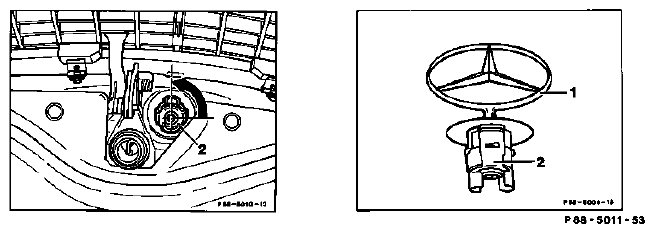

Fig 1: Identifying Spring Bracket And Mercedes Star

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine hood	open.
Spring bracket (2)	turn 90° to left with combination pliers.
Mercedes star (1)	remove from engine hood upward. Avoid damaging paint! When installing observe installed position (lettering legible from front)!
