Removal, installation and adjustment of the wind deflector - ra77001400250x(0250)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140

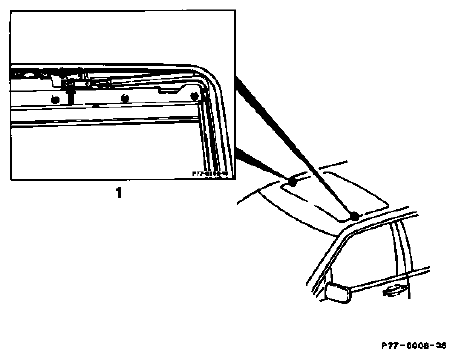

| Wind deflector (Fig 1) | press out at mount with screwdriver and remove upward. |
| Reinstall | in opposite order. |
ADJUSTMENT
| Screw (Fig 1, bottom arrow) on mounts | loosen and adjust wind deflector by moving mount so that it extends 4 mm above the sliding roof cutout when the tilting/sliding roof is completely open. |
| Screws | tighten. |
