Removal and installation of the sun roof seal - ra77001400130x(0130)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Wind deflector removed (77-250)

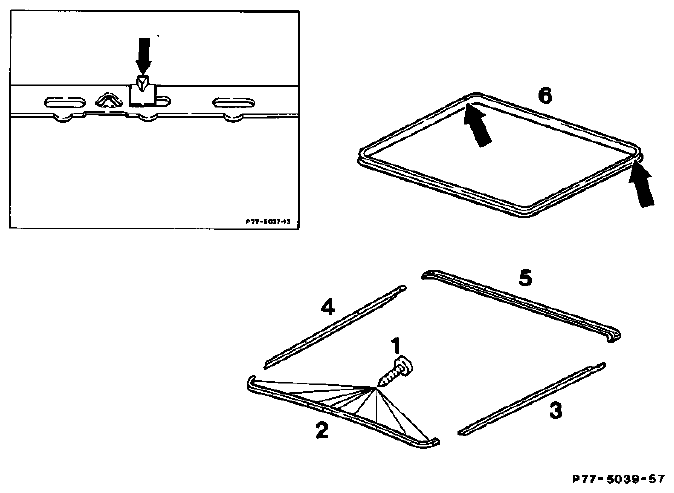

Fig 1: Identifying Screws On Retaining Bar With Seal

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Screws (1) on retaining bar (2)	loosen
Seal (6)	pull out of retaining bars (2, 3, 4 and 5) Pull the seal (6) out of the retaining bar (2) carefully because counter hooks are located on the retaining bar.
Retaining bar (2)	press up until the spacers (Fig 1) are against the roof and tighten screws (1).
Seal (6)	press into retaining bars (3, 4 and 5) at points marked with arrows first with ribbing pointing up, because retaining bars are offset slightly at the corners.
Reinstall	in opposite order.
