Removal and installation of the sun roof headlining - ra77001400050x(0050)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

A. Steel sliding/tilting roof, B. Glass sliding/tilting roof Model 140

Steel tilting/sliding roof
Glass tilting/sliding roof

Steel tilting/sliding roof

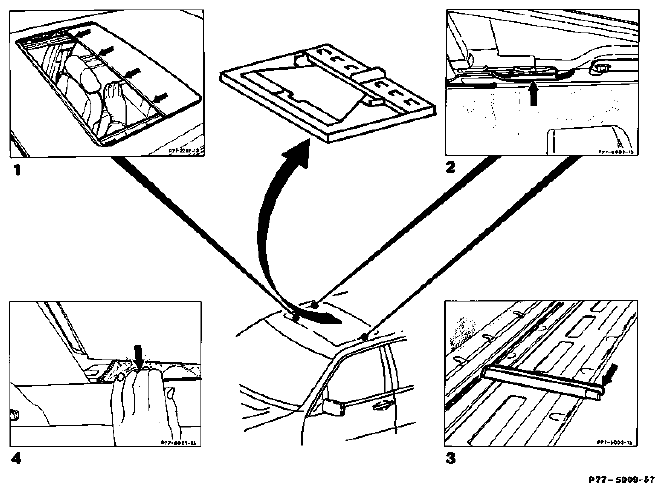

Fig 1: Identifying Steel Sliding Roof Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Tilting/sliding roof	open, unclip headliner with plastic wedge (Fig 1), pull out toward top and completely close tilting/sliding roof.
Slider (Fig 1)	position horizontally and completely open tilting/sliding roof.
Reinstall	in opposite order.

Installation note

When installing insert tube into guide on head-liner (Fig 2). Move tilting/sliding roof half way up and check to ensure that side covers move in and out properly (Fig 2).

Glass tilting/sliding roof

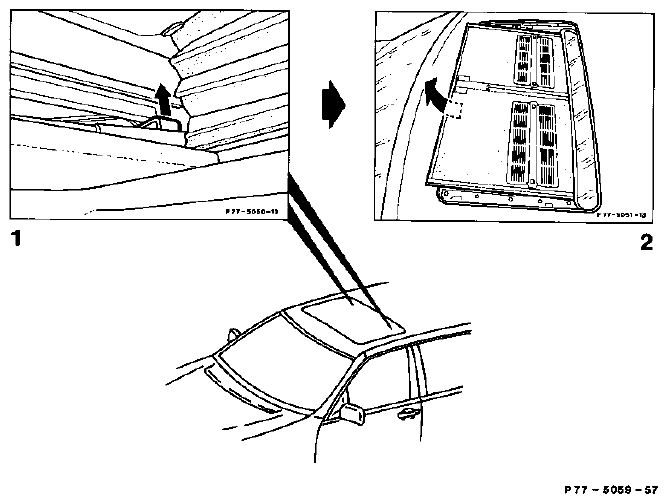

Fig 2: Identifying Glass Sliding Roof Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Tilting/sliding roof	move to raised position.
Tilting bracket (Fig 2)	unlock at transport bridge using screwdriver.
Tilting/sliding roof	open fully.
Headliner (Fig 2)	lift out.
Reinstall	in opposite order.
