Removal and installation of the sun roof - ra77001400100x(0100)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

A. Steel sliding/tilting roof, B. Glass sliding/tilting roof Model 140

Preliminary work:

Headliner on tilting/sliding roof removed (77-050).

Steel tilting/sliding roof
Glass tilting/sliding roof

Steel tilting/sliding roof

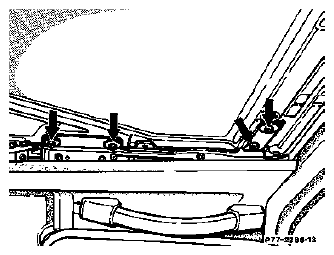

Fig 1: Locating Nuts And Bolts

G05440378

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Locating Centering Hole

G05440379

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

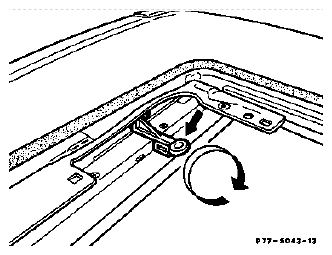

Fig 3: Locating Bracket Retainer

G05440380

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

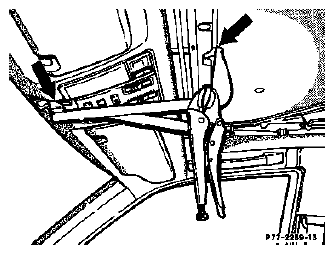

Fig 4: Locating Tilting / Sliding Roof Panel

G05440381

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Nuts and bolts (Fig 4)	unscrew and remove tilting/sliding roof panel.
Centering bolt (shop-made)	insert into centering hole (Fig 4).
Angled bracket retainer (Fig 4)	fix using special tool, part no. 140 589 04 21 00.
Interior rear view mirror	remove.
Tilting/sliding roof panel	position, loosely install nuts and bolts.
Tilting/sliding roof panel (Fig 4)	pretension up to markings for mounting brackets with special tool, part number 124 589 00 37 00, tighten nuts and bolts, remove special tool and centering bolt.
Gap on tilting/sliding roof panel	check.
Gap dimension at front =0.15 mm
Gap dimension at sides and rear =0.30 mm
Continue to reinstall	in opposite order.

Glass tilting/sliding roof

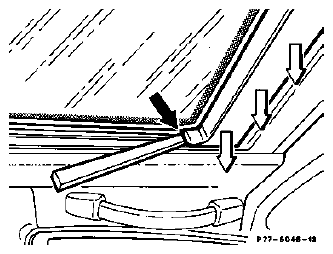

Fig 5: Locating Surround

G05440382

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

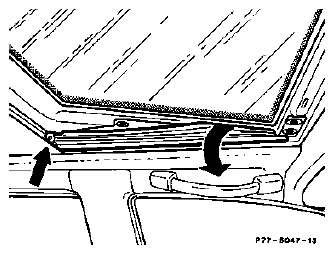

Fig 6: Locating Rubber Bellows

G05440383

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

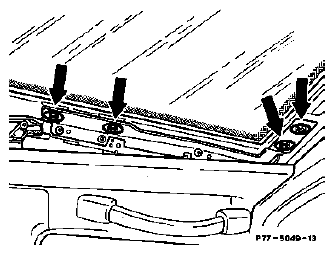

Fig 7: Locating Bracket Retainer

G05440384

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

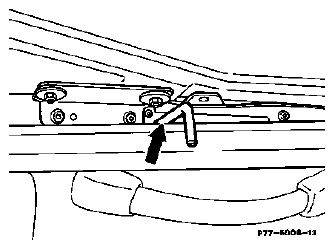

Fig 8: Locating Centering Hole

G05440385

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

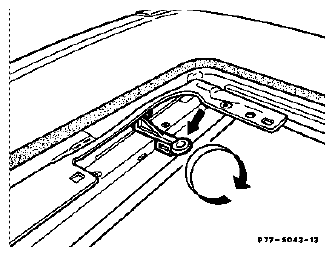

Fig 9: Locating Bracket Retainer

G05440386

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

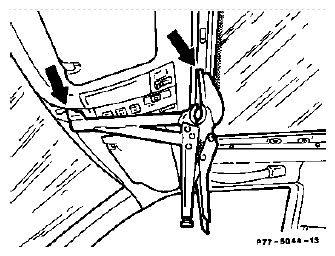

Fig 10: Identifying Special Tool

G05440387

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Tilting/sliding roof	move to raised position.
Surround (Fig 5)	remove. First unhook surround in the corners using plastic wedge, then remove downwards.
Rubber bellows (Fig 6)	detach.
Nuts (3)	unscrew and remove tilting/sliding roof panel.
Centering pins (shop-made)	insert into centering hole (Fig 8).
Angled bracket retainer (Fig 9)	fix using special tool, part no. 140 589 04 21 00.
Interior rear view mirror	install.
Tilting/sliding roof panel	install and attach nuts loosely.
Tilting/sliding roof panel	pretension using special tool (Fig 10), part no. 140 589 00 37 00, tighten nuts, remove special tool and centering pins.
Gap dimensions	check in the same way as on steel tilting/sliding roof
Further installation	in opposite order

Special tools

Fig 11: Identifying Special Tools (124 589 00 37 00)

G05440388

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 12: Identifying Special Tool (140 589 00 37 00 77)

G05440389

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 13: Identifying Special Tool (140 589 04 21 00 77)

G05440390

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shop-made tool

Centering bolts (2 each)

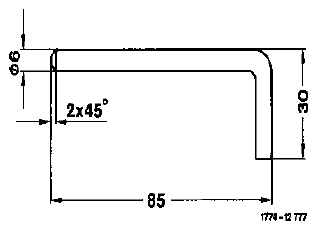

Fig 14: Identifying Steel Tilting / Sliding Roof Dimensions

G05440391

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
