Adjustment of the sun roof - ra77001400110x(0110)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Headliner on tilting/sliding roof removed (77-050).

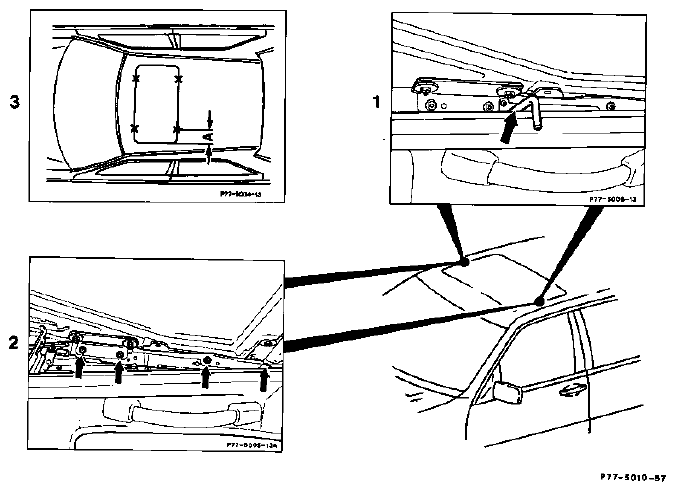

Fig 1: Identifying Sliding Roof Panel Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Tilting/sliding roof	raise.
Screws (Fig 1)	loosen.

NOTE: On the glass tilting/sliding roof the rubber bellows on the tilting/sliding roof panel must be detached (77-100, Fig 1 and Fig 1)

Tilting/sliding roof	lower.
Centering bolt (shop-made)	insert into centering hole (Fig 1).
Height adjustment at front	0 to 1 mm lower than roof panelling.
Height adjustment at rear	0 to 1 mm higher than roof panelling.
Screws	tighten.
Centering bolt	remove.
	After closing from sliding position check adjustment at points "A" = 140 mm (Fig 1).
Continue to reinstall	in opposite order.

Shop-made tool

Centering bolts (2 each)

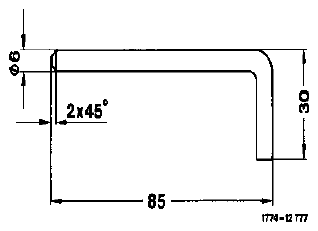

Fig 2: Identifying Steel Tilting/Sliding Roof Dimensions
