Roadster soft top: checking closing element - wh7750pkw0000x(7750)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 129 to 6/93

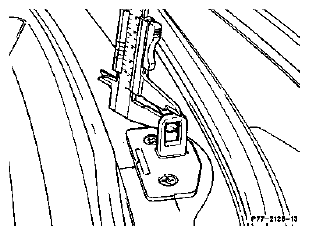

Fig 1: Checking Closing Element

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Roadster soft top	open.
Closing element	measure with caliper gauge at worn as well as unworn point.

NOTE: If wear is ≥ 0.5 mm, replace closing element.
