Checking and correcting fluid level in soft top hydraulic system, roll-over bar - wh7710pkw0000x(7710)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Models 124.06 to 6/93, 129 to 6/93
| Soft top (hydraulic actuation) | put down into top compartment. |
| Roll-over bar | lower. |
| Model 124.06 Panelling |
lift up at right trunk recess, insert. |
| Model 129 | remove, install. |
| Spare tire | |

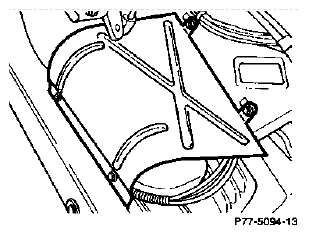

| Covering above hydraulic unit | remove, install. |
|
NOTE:

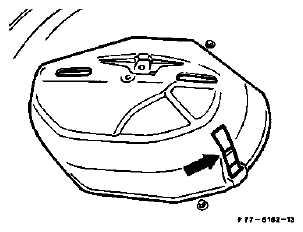

As of vehicle ident. no. 029941 an opening for checking the oil level is located in the cover (arrow).
|
|
| Oil level | read off on oil reservoir. |
|
NOTE:
The oil level should be between the maximum and minimum mark.
|
OIL GRADE/CAPACITY
| Oil grade | MB hydraulic oil part no. 000 989 91 03 | |
| Capacity | Hydraulic soft top | 1.25 liters |
| Mechanical soft top | 1.0 liters | |
