Removing and installing door liner on front door - AR72.10-P-1000S
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
| Removing, installing | |||
|---|---|---|---|

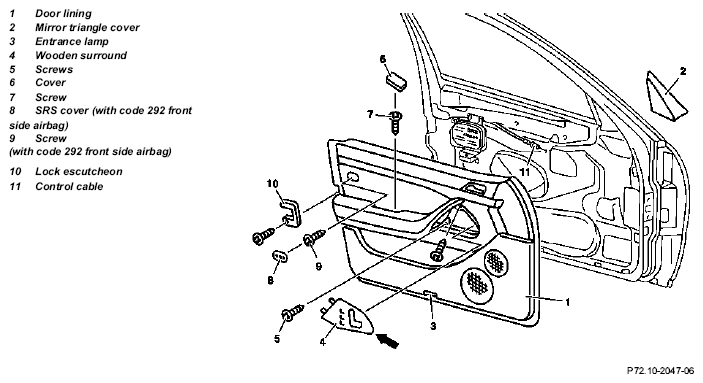

| 1 | Open crank window | ||
| 2 | Unclip mirror triangle cover (2) from above using assembly wedge, pull upwards and remove | Fig 2 | |
| 3 | Unclip entrance lamp (3), disconnect electrical connection and remove entrance lamp | ||
| 4 | Unclip wooden surround (4) on the front side (arrow) with extractor hook, push forwards and remove. | Fig 3 | |
| 5 | Disconnect switch group connectors | ||
| 6 | Unscrew screws (5) in the area of the front door handle | ||
| 7 | Unclip cover (6) on armrest and unscrew screw (7) | ||
| 8 | Unclip SRS cover (8) and unscrew screw (9) | With code 292 (front side airbag) | |
| 9 | Detach lock escutcheon (10) | ||
| 10 | Press door lining (1) on the inner door panel at bottom, front and rear using assembly wedge | Fig 2 | |
| 11 | Lift door lining (1) out of retaining clips at the top of the sealing rail using assembly wedge and at the same time pull away from the inner door panel | Fig 2 | |
| 12 | Unhook control cable (11) on interior door control | ||
| 13 | Remove door lining (1) and put down on clean base | ||
| 14 | Check film and clips on inner door panel and replace if necessary. | *BR00.45-Z-1004-02A | |
| 15 | Check clips on door lining (1) and replace if necessary. | ||
| 16 | Install in reverse order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-02A | Adhesives | A 001 989 30 71 |
