Removal and installation of the striker key on the driver's/rear door - ra72001400252x(0252)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
| Driver's or rear door | open. |

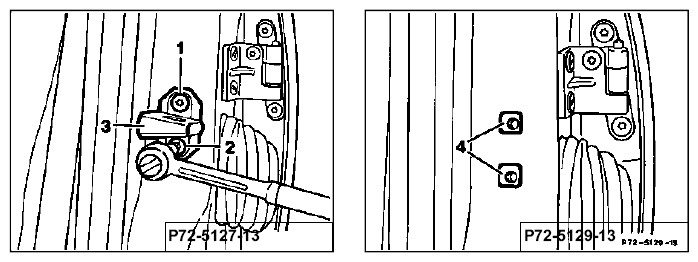

| Screw (1 and 2) | screw out, use T40 internal Torx socket wrench insert (20 Nm). |
| striker eye (3) | remove. |
| Tapped plate (4) | can be removed from the sheet metal cage in the B-pillar after removing the B- pillar panelling. |
| When installing the striker eye (3) | tighten by hand, then adjust striker eye (Removal, installation and adjustment of the driver's door , item 12 - 13). |
