Removal and installation of the handle on the door paneling - ra72001400140x(0140)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Door covering removed (Removal and installation of the lining on the driver's door )

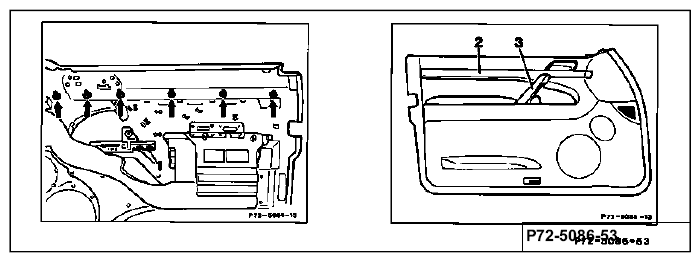

| Nut (1) on rear of door covering | screw off (2 each, WAF 10 mm). |
| Nut on wooden cover | screw off (arrows). |
| Wooden cover (2) | remove. |
| Handle (3) | remove. |
| Reinstall | in opposite order. |
