Removal and installation of the exterior handle on the rear door - ra72001400241x(0241)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
| Door sealing frame | pull out of channel in area of door lock. |

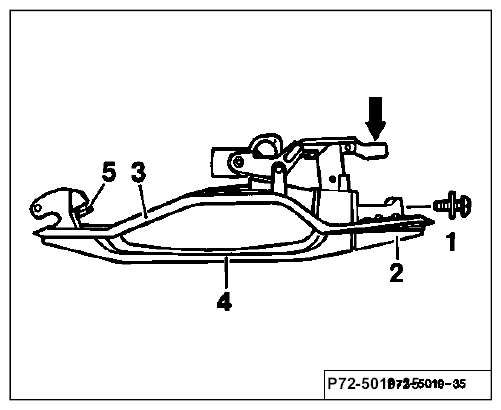

| Screw (1) | screw out while pressing door handle toward front. Do not remove screw (1); it is secured against falling by a retaining washer. |
| Door handle (2) with base (3) | move toward front and remove. Observe installation note! |
| Door handle (2) with base (3) | install so that actuating lever (arrow) on door handle (4) engages in door lock. |
| Screw (1) | screw in (6 Nm). |
| Door sealing frame | press into channel in area of door lock. |
Installation note

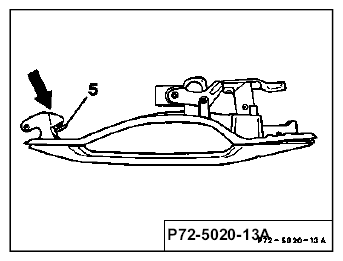

Adjust position of door handle on door panelling with screw (5) ( Allen wrench WAF 3mm).
Special tool
Removal, installation

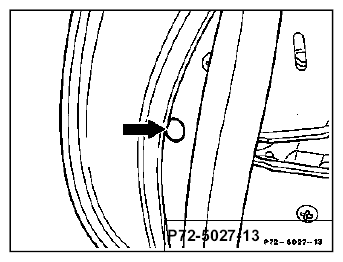

- Pull door sealing frame out of channel in area of door lock.

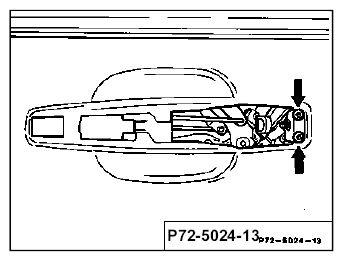

- Screw out screw (arrow) while simultaneously pressing door handle toward front.NOTE: Do not remove screw, it is secured against falling by a retaining washer.
- Move door handle toward front out of hinge strap and door lock.
Observe installation note!

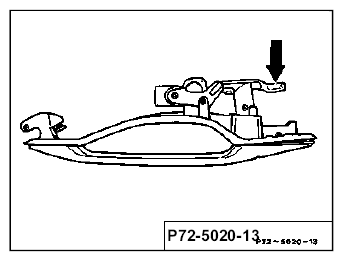

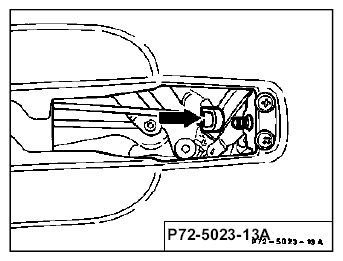

- Install door handle with base so that actuating lever on door handle engages in door lock (arrow).
- Screw in screw (6 Nm).
- Install door sealing frame.
- Check for proper function.
NOTE:
Remove door liner to remove hinge strap.
Screw out screws (arrows) and remove hinge strap through installation opening.
