Replacing bulbs on pushbutton control module for air conditioning (automatic) - AR83.40-P-6352A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140 with CODE (581a) Automatic air conditioning

N22 "Bosch" pushbutton control module

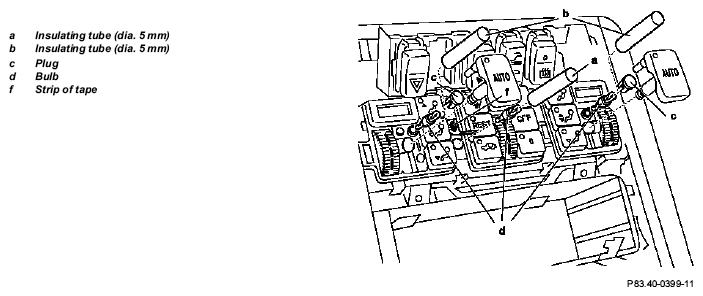

Fig 1: Identifying Bulbs On N22 "Bosch" Pushbutton Control Module
G05440773Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

N22 "Kammerer" pushbutton control module

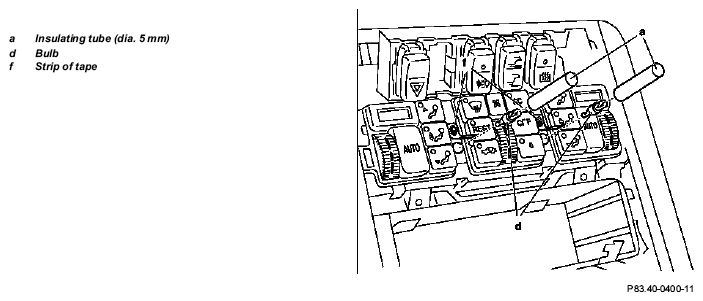

Fig 2: Identifying Bulbs On N22 "Kammerer" Pushbutton Control Module
G05440774Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removal, installation
1 Remove cover on center console   ra68001400235x
2.1 Remove plug (c) Bosch version
3 Pull off strip of tape (f)
4 Remove bulbs (d) IMPORTANT For this purpose slide piece of insulating tubing (dia. 5 mm) over bulb
NOTESInstallation:  After installing the bulb check for proper function
5 Reinstall in opposite order
