Removing and installing pushbutton control module - AR83.40-P-6350D
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 140 up to 31.8.95
| Removal, installation | |||
|---|---|---|---|
| 1 | Remove ignition key | ||
| 2 | Remove radio | ||
| 3 | Remove cover on center console | ra68001400235x | |

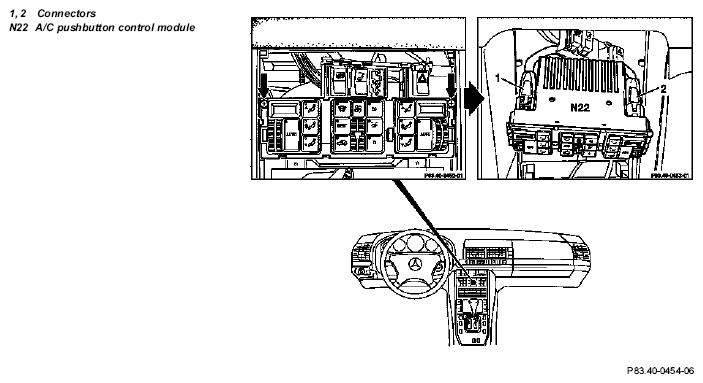

| 4 | Unscrew screws for A/C pushbutton control module (N22, arrows) | ||
| 5 | Disconnect A/C pushbutton control module (N22) and disconnect connectors (1, 2) | ||
| 6 | Reinstall in opposite order | After completion of work↓ Check for proper function according to diagnosis manual |
