Removing and installing push-button control module - AR83.40-P-6350C

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 129 as of 1.6.96, 140, 202 as of 1.9.95, 208, 210 with CODE (581a) Air conditioning (automatic)

Shown on model 129

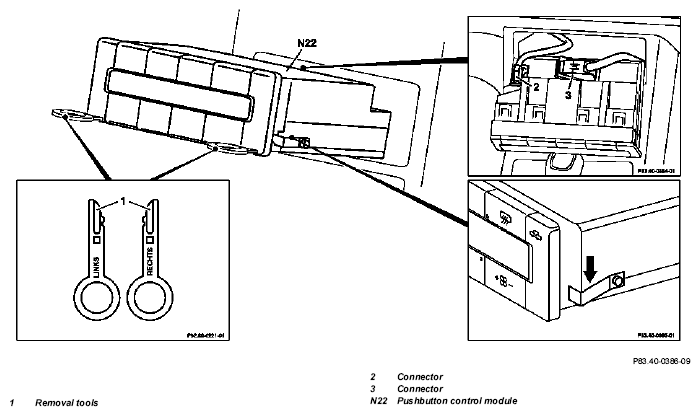

Fig 1: Identifying Push-button Control Module Components - Shown on Model 129
G04714232Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removal, installation
1 Pull out A/C push-button control module (N22) IMPORTANT For this purpose insert removal tools (1) ↓
Press back retaining springs (arrow) on removed push-button control module and pull out removal tools (1)
2 Disconnect connectors (2, 3) on A/C push-button control module (N22) IMPORTANT Unhook connectors by pivoting retaining strap
3 Reinstall in opposite order IMPORTANTInstallation
When replacing automatic A/C push-button control module on models 140, 202, 208, 210, version coding must be carried out.
