Removing and installing evaporator housing - AR83.30-P-5200D

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140

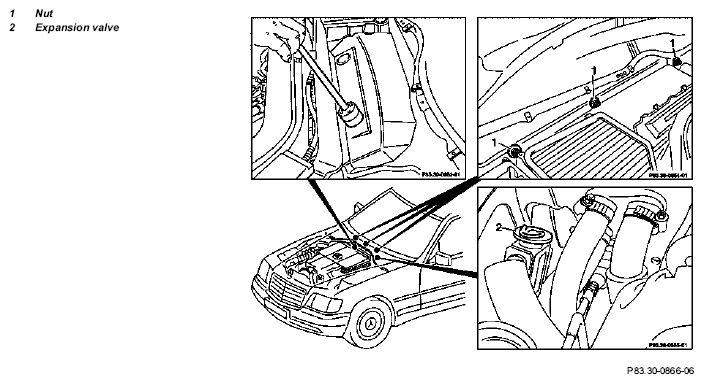

Fig 1: Identifying Evaporator Housing Components (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

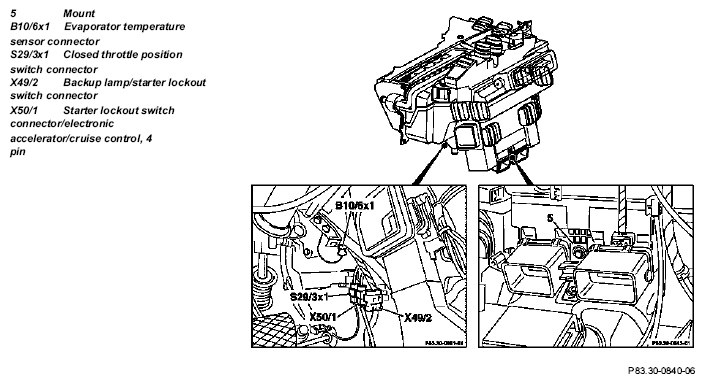

Fig 2: Identifying Evaporator Housing Components (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

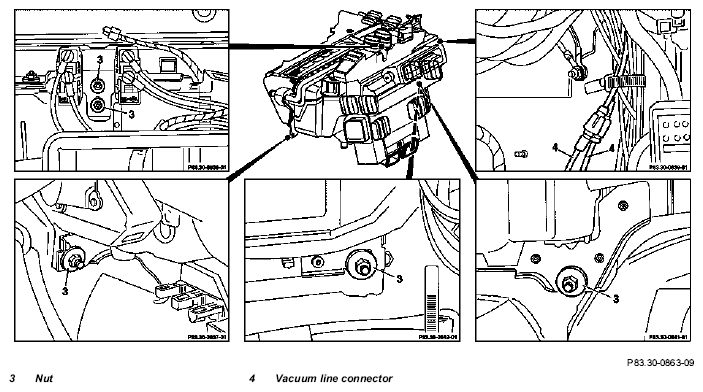

Fig 3: Identifying Evaporator Housing Components (3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
	Danger of severe burns to skin and eyes from hot coolant spewing out. Toxic when swallowed	Open cooling system only when coolant temperature is below 90 °C. Open cover slowly and reduce pressure. Do not fill beverage containers with coolant. Wear protective gloves, protective clothing and protective goggles.	AS20.00-Z-0001-01A
	Explosion hazard when performing welding or brazing work on closed air conditioning. Poisoning hazard from inhaling overheated refrigerant vapors. Injury hazard from eye or skin contact with liquid refrigerant	Never perform welding or brazing work on the closed air conditioning system or in its vicinity. Smoking and open flame is prohibited. Wear protective goggles and protective gloves, work only in well ventilated rooms. Perform repair work on air conditioning circuit only if system is discharged.	AS83.00-Z-0001-01A
	Action to be taken in the event air conditioning is damaged or leaks		AH83.30-N-0004-01A
	Protect air conditioning circuit and components from moisture during repair work	All models with air conditioning	AH83.30-N-0005-01A
	Notes on handling R134a refrigerant	All models with R134a refrigerant	AH83.30-N-0003-01A
1	Disconnect battery negative pole
2	Drain coolant
3	Remove wiper system		ra82001400640x
4	Remove water collector		ra83001400140x
5	Disconnect hoses on heat exchanger	Plug openings on heat exchanger (parts kit) Installation: Check condition of hose clamps, replace if necessary
6	Empty air conditioning (recycle), evacuate, charge, check for leakage	Add quantity of compressor oil evacuated to refrigeration circuit when charging air conditioning	*BF83.00-P-1001-01A
7	Remove intake and pressure lines on expansion valve (2)	Plug openings on expansion valve (2) (parts kit)	ra83001400552x
7	Remove intake and pressure lines on expansion valve (2)	Plug openings on expansion valve (2) (parts kit)	Installation: Replace sealing rings and moisten with compressor oil when inserting
			*BA83.30-P-1001-01A
8	Unscrew nuts (1) on fire wall	3 each
9	Disconnect electrical connectors on blower support
10	Remove center console		ra68001400200x
11	Remove instrument panel		ra68001400100x
12	Remove insulating mat above A/C housing
13	Remove carpeting in front
14	Remove rear footwell air ducts	1 screw each
15	Remove air duct for rear air outlet	1 nut
16	Unclip pull cable for rear air outlet
17	Remove airbag control module		ra91001400622x
18	Remove ignition/starter switch
19	Remove cross brace in front of A/C housing	1 nut, 3 screws
20	Remove left and right reinforcement tubes to support	left: 3 screws, 2 nuts right: 1 screw, 1 nut
21	Remove mount (5)
22	Unscrew nut (3)	3 each
23	Remove outer left mount on A/C housing	3 nuts
24	Remove outer right mount on A/C housing	4 nuts
25	Remove right supporting tube, for this purpose, unclip valve strip	3 screws, 5 nuts	ra83001400138x
26	Unscrew nuts (3) between defroster nozzles	2 each
27	Remove air ducts to left and right side nozzles
28	Disconnect starter lockout and backup lamp switch connector (X49/2)
29	Disconnect evaporator temperature sensor connector (B10/6x1)
30	Pull wiring harness for blower out of A/C housing together with rubber grommet
31	Disconnect vacuum line connector to main air flap (4)
32	Disconnect gray/green vacuum line from vacuum valve block
33	Pull A/C housing out toward rear
34	Reinstall in opposite order
35	Add coolant and check cooling system for leakage	Engine 104	ra20001040100x
		Engine 119	ra20001190100x
		Engine 120	ra20001200100x
		Engine 603	ra20006010010x
36	Replace receiver/drier		ra83001400540x
		Observe quantity of oil to be added when replacing receiver/drier	*BF83.55-P-1005-01A
37	Switch on air conditioning and allow it to idle for approx. 4 minutes	Set temperature dial to min. (blue) or automatic air conditioning to " " Blower to max.
38	Check air conditioning for proper function	Air outlet temperature at center nozzle should not drop below +5 ° C, if necessary Perform diagnosis according to Diagnosis Manual
39	Find leaky point in air conditioning circuit		AR83.30-P-1209-01D
			*WE58.40-Z-1002-20A

AIR CONDITIONING

Number	Designation		Model 140
BA83.30-P-1001-01A	Nut on expansion valve	Nm	10

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			Model 140 without rear air conditioning, code 582 up to veh. ident. no. 1A 128 373	Model 140 with rear air conditioning, code 582 up to veh. ident. no. 1A 128 373
BF83.00-P-1001-01A	Capacity Air conditioning/Automatic air conditioning	R12 refrigerant	g	1300	1500
		R134 a refrigerant	g	1200	1400
		Specifications for service products	She et	361	361

AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number	Designation			Model 140 without rear air conditioning, code 582 as of veh. ident. no. 1A 128 374	Model 140 with rear air conditioning, code 582 as of veh. ident. no. 1A 128 374
BF83.00-P-1001-01A	Capacity Air conditioning/Automatic air conditioning	R12 refrigerant	g	1300	1500
		R134 a refrigerant	g	1150	1250
		Specifications for service products	She et	361	361

A/C COMPRESSOR

Number	Designation			A/C compressor 10PA20 R12 refrigerant in model 140	A/C compressor 10PA20 R134 a refrigerant in model 140
BF83.55-P-1005-01A	Additional oil filling capacity when replacing receiver/drier	Compressor oil	cm³	10	10
BF83.55-P-1005-01A		Specifications for service products	She et	362	362

WORKSHOP EQUIPMENT

WE58.40-Z-1002-20A

Air conditioning leak detector
