Removing and installing auxiliary fan preresistor - AR83.30-P-5370D
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 140 up to 30.11.94

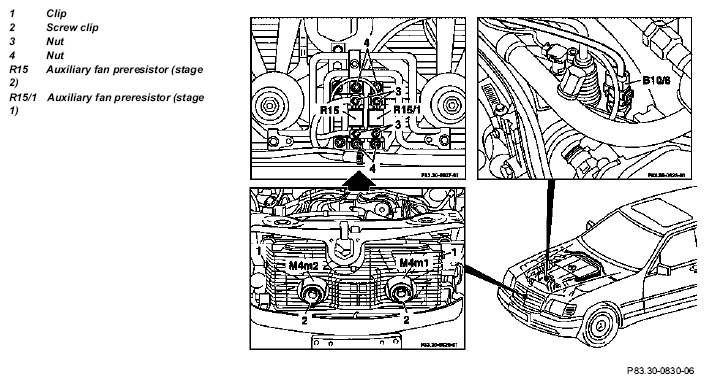

Location of connections to auxiliary fan preresistors (R15, R15/1) on 3-stage auxiliary fans
Location of connections to auxiliary fan preresistors (R15, R15/1) on 2-stage auxiliary fans
| Removal, installation | |||
|---|---|---|---|
| 1 | Disconnect negative pole on battery | ||
| 2 | Unclip clips (1) | ||
| 3 | Unscrew screw clips (2) | ||
| 4 | Remove grille | ||
| 5 | Unscrew nuts (3) | ||
| 6 | Remove electrical leads | ||
| 7 | Unscrew nuts (4) | ||
| 8 | Reinstall in opposite order | ||
| 9.1 | Check 3-stage auxiliary fans for proper function as follows | ||
| 10.1 | Disconnect connector on coolant temperature sensor (B10/8) or (B11/4). Set resistance decade to 310 Ω (stage 1) or 250 Ω (stage 2). | Fig 4 | |
| 11.1 | Ignition ON | ||
| 12.1 | Set pushbutton control module (Automatic AC) to "AUTO" | ||
| 13.1 | Auxiliary fans should rotate to right | ||
| 9.2 | Check 2-stage auxiliary fans for proper function as follows ↓ | ||
| 10.2 | Disconnect connector from coolant temperature sensor (B10/8) or (B11/4, pin 1 and 2) and connect resistance decade. Set resistance decade to 310 Ω | ||
| 11.2 | Ignition ON | ||
| 12.2 | Set pushbutton control module (Automatic AC) to "AUTO" | ||
| 13.2 | Auxiliary fans should rotate to right |
