Replacing ceramic web - ra83001405772x(5772)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140 with auxiliary heater

Previous work:

Molding on front right fender removed.

Operation number of operation texts and work units or standard texts and flat rates:

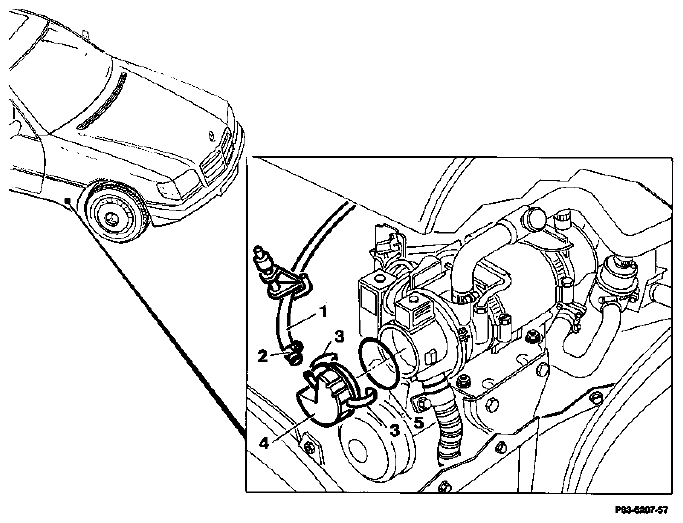

Fig 1: Identifying Fuel Hose, Clamp, Retaining Clips And Grommet

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fuel hose (1)	Clamp using special tool 000 589 40 37 00.
Clamp (2)	Open, close.
Fuel hose (1)	Disconnect, connect.
Retaining clips (3) at side	Unclip, clip in.
Burner insert (4)	Pull off, install.
	NOTE: The ceramic web is bonded with the burner insert (4). The entire burner head (4) must therefore be replaced.
Grommet (5)	Replace.
Auxiliary heater	Check function.
CO₂ emission value	Check and adjust if necessary (Checking and adjustment of the CO2 emission value ).
