Removing, installing and checking outside temperature - ra83001400547x(0547)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Operation no. of job texts and work units, standard texts and flat rates: 83-8058

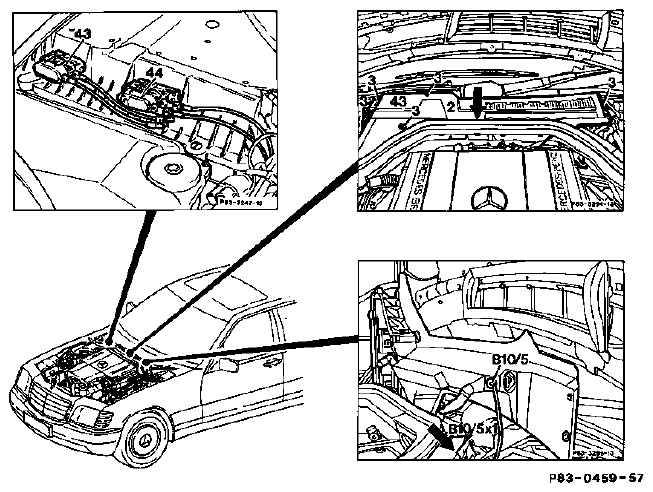

| Vacuum lines on element for main air flap (44) | Pull off. |
| Slacken 6 screws (3) | Raise air collector (2). |
| Outside temperature sensor B10/5 | Pull out. |
| Open cable duct | Disconnect plug connector B10/5x1, check temperature sensor and renew if necessary. |
| Install | In reverse sequence. |
Erase fault memory in the control unit (Diagnosis manual - air conditioning). |
TEST DATA
| Sensor temperature in °C | Resistance in kΩ |
| 0 | 8.1-9.9 |
| +5 | 6.3-7.7 |
| +10 | 5.0-6.0 |
| +15 | 4.0-4.6 |
| +20 | 3.1-3.9 |
| +25 | 2.4-3.0 |
| +30 | 1.9-2.3 |
| +35 | 1.6-2.0 |
| +40 | 1.4-1.6 |
| +45 | 1.1-1.3 |
COMMERCIALLY AVAILABLE
| Multimeter | e.g. Sun, DMM-5 |
