Removing and installing timer - ra83001405892x(5892)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 with auxiliary heater
Previous work:
Lower center console panel removed (REMOVAL AND INSTALLATION OF SWITCHES IN CENTER CONSOLE COVER ).
Operation number of operation texts and work units or standard texts and flat rates:

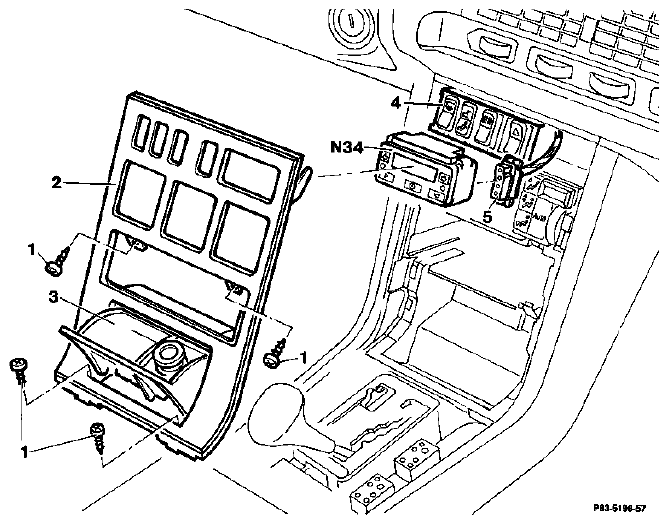

| Ground cable on battery | Disconnect, connect. |
| Screws (1) | Unscrew, screw in. |
| Panel (2) | Lift at ashtray (3), remove; insert top first and fold down. |
| Switch carrier (4) | Unclip from panel (2); clip into panel (2). |
| Connector (5) | Disconnect, connect. |
| Auxiliary heater timer (N34) | Unclip from panel (2); clip into panel (2). |
| Auxiliary heater | Check function. |
