Removing and installing control unit - ra83001405935x(5935)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 with auxiliary heater
Previous work:
Foot mat in front right footwell removed.
Operation number of operation texts and work units or standard texts and flat rates:
| Ground cable on battery | Disconnect, connect. |

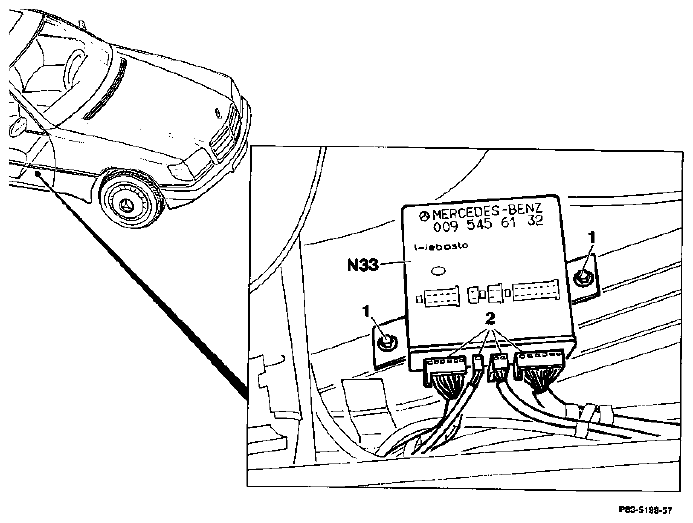

| Screw (1) | Unscrew, screw in. |
| Connectors (2) | Disconnect, connect. |
| Auxiliary heater control unit (N33) | Remove, install. |
