Removal and installation of vacuum elements - ra83001400165x(0165)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

For main-air flaps, recirculated air flap, center outlet exhaust air flap or center outlet blend flap - Model 140 with automatic heater control

Operation No. of Job Texts and Work Units, Standard Texts and Flat Rates:

Vacuum elements for main air flap (43 and 44)

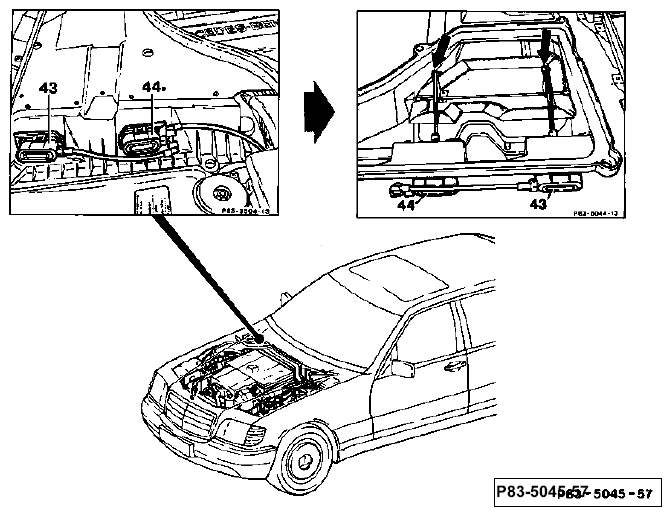

Fig 1: Identifying Vacuum Elements Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Air collector unit	Remove (Removal and installation of the air collector unit and water collector ).
Linkage on main air flap	Unclip (arrows).
Vacuum line	Pull off.
Each element	Unscrew one screw.
Vacuum elements (43 and 44)	Remove.
Install	In the reverse sequence.
Check	Function of system.

Vacuum element for recirculated air flap (49)

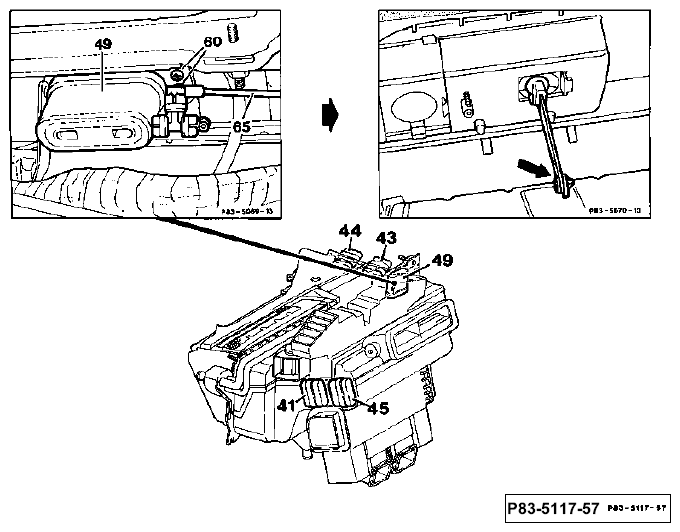

Fig 2: Identifying Vacuum Element, Recirculated Air Flap Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Heater unit	Remove (Removal and installation of heater unit ).
Vacuum line (65)	Pull off.
Control linkage	Unclip (arrow).
2 screws (60)	Unscrew.
Vacuum element	Remove.
Install	In the reverse sequence. Check function of system before installing the instrument panel.

Vacuum elements for center outlet exhaust air flap (41) or center outlet blend flap (45)

Fig 3: Identifying Vacuum Elements, Center Outlet Exhaust Air Flap And Center Outlet Blend Flap

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Dashboard	Remove (REMOVAL AND INSTALLATION OF THE INSTRUMENT PANEL ).
Insulation mat	Remove.
Ignition starter switch	Remove (46-645).
Vacuum line(s) (65)	Pull off.
2 screws (60) for each element	Unscrew.
Vacuum element(s) (41 and/or 45)	Pull off.
Install	In the reverse sequence ensuring that the exhaust air flap (vacuum element 41) is at the left stop and/or the blend flap (vacuum element 45) is at the left stop.
