Removal and installation of the preresistor group - ra83001400125x(0125)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 with automatic heater control
Operation No. of Job Texts and Work Units, Standard Texts and Flat Rates:
| Wiper system | Remove (REMOVAL AND INSTALLATION OF WIPER SYSTEM ). |
| Water collector | Remove (Removal and installation of the air collector unit and water collector ). |

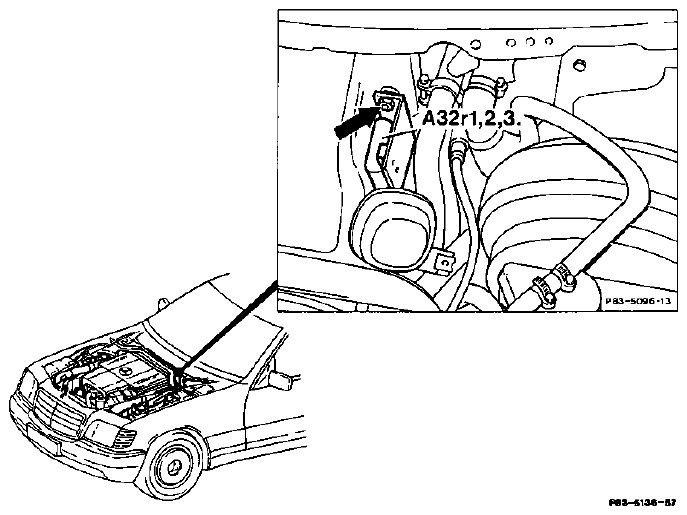

| 1 nut (arrow) | Unscrew. |
| Pre-resistor group (A32r1, r2, r3) | Pull out (plug connection). |
| Install | In the reverse sequence and check function before installing water collector. |
